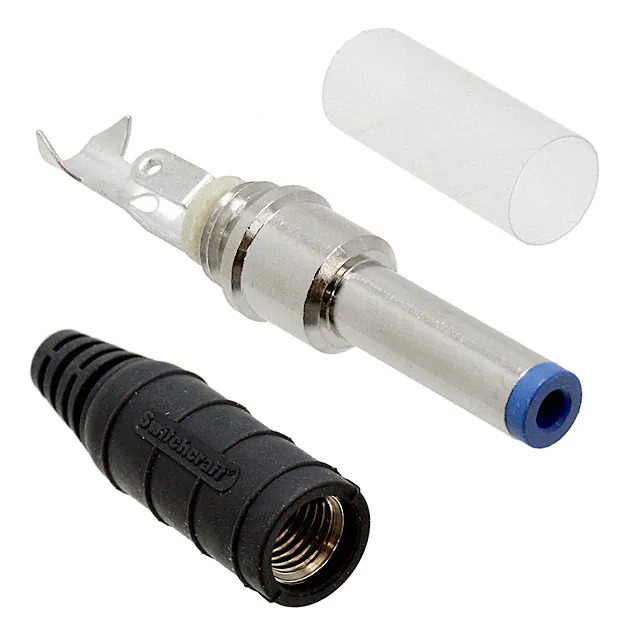

S1015 Switchcraft Inc.
Same model may have multiple batches, images only for reference.

S1015

Part No S1015
Manufacturer Switchcraft Inc.
Catalog Barrel - Power Connectors
Description CONN PWR PLUG 2X5.5MM SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Power Connectors
Mfr Switchcraft Inc.
Series S10
Package Bulk
Product Status Active
Connector Type Plug
Gender Female
Industry Recognized Mating Diameter 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter -
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Termination Solder
Shielding Unshielded
Features Strain Relief
Insulation Color Blue
Voltage - Rated 24VDC
Current Rating (Amps) 11 A
Mating Length/Depth -
Ingress Protection -
Material Flammability Rating -
Temperature Range - Operating -40°C ~ 105°C
Contact Material - Plating Tin
Body Material Copper Alloy
Includes 2 pcs - 1 Connector, 1 Handle
Housing Material Elastomer
Contact Material Copper Alloy
Thread Size -
Body Color Silver, Black
Base Product Number S10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1377015-S1015
Ultra Librarian 3D Model Ultra Librarian S1015 CAD Model

Description

The S1015 is a power connector barrel connector manufactured by Switchcraft Inc.

  • Series: S10
  • Mounting Type: Free Hanging (In-Line)
  • Voltage Rating: 24VDC
  • Current Rating (Amps): 11A
  • Shielding: Unshielded
  • Gender: Female
  • Number of Conductors: 2
  • Number of Contacts: 3
  • Mating Diameter: 2.00mm ID (0.079") x 5.50mm OD (0.217")
  • Contact Material: Copper Alloy
  • Insulation Color: Blue
  • Termination: Solder
  • Features: Strain Relief
  • Body Color: Silver, Black
