Same model may have multiple batches, images only for reference.

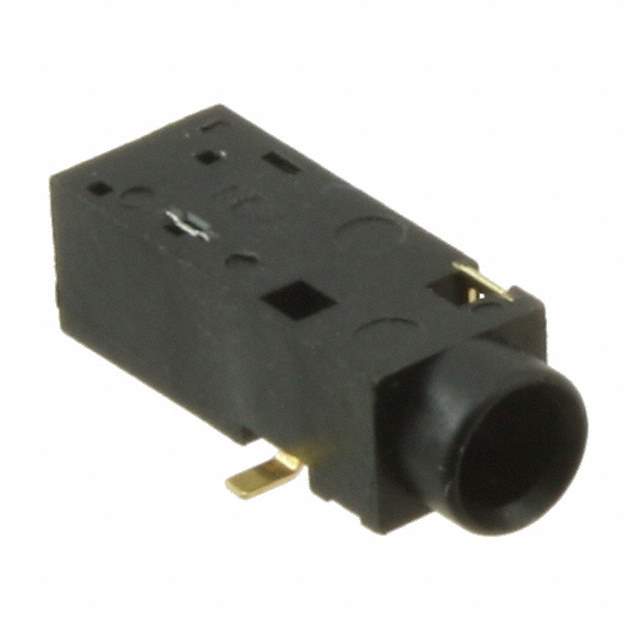

35RASMT2BHNTRX Real Image
Same model may have multiple batches, images only for reference.

35RASMT2BHNTRX

Part No 35RASMT2BHNTRX
Manufacturer Switchcraft Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK STEREO 3.5MM SMD R/A / 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Audio Connectors
Mfr Switchcraft Inc.
Series 35RASMT
Package Tape & Reel
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 3 Conductors, 3 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Voltage - Rated 250VAC
Current Rating (Amps) 3 A
Contact Material - Plating Silver
Body Color Black
Housing Material Thermoplastic
Contact Material Copper Alloy
Base Product Number 35RASM
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339625-35RASMT2BHNTRX
Ultra Librarian 3D Model Ultra Librarian 35RASMT2BHNTRX CAD Model

Description

The 35RASMT2BHNTRX is a female phone jack connector from Switchcraft Inc.

  • Conductors: 3
  • Contacts: 3
  • Contact Material: Silver-Plated Copper Alloy
  • Voltage Rating: 250VAC
  • Maximum Current: 3A
  • Mounting Type: Surface Mount, Right-Angle
  • Panel Hole Size: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
  • Shielded: Unshielded
  • Body Color: Black
  • Operating Temperature: -25°C to 85°C
  • RoHS Compliant: Yes
  • REACH Unaffected: Yes
