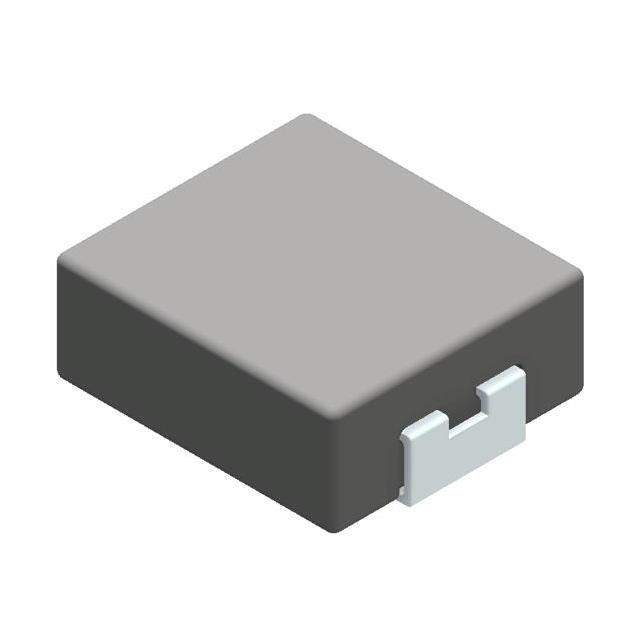

Same model may have multiple batches, images only for reference.

TMPC 0302H-2R2MG

Name: TMPC 0302H-2R2MG
Brand: TAI-TECH Advanced Electronics
SKU: 1383669
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TMPC 0302H-2R2MG
Manufacturer	TAI-TECH Advanced Electronics
Catalog	Fixed Inductors
Description	2.2 UH SHIELDED MOLDED INDUCTOR / 2.2 µH Unshielded Molded Inductor 3.5 A 75mOhm Max Nonstandard
Datasheet	TMPC 0302H-2R2MG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	TAI-TECH Advanced Electronics
Series	TMPC0302H
Package	Tape & Reel
Type	Molded
Material - Core	Carbonyl Powder
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	3.5 A
Current - Saturation (Isat)	3.7A
Shielding	Unshielded
DC Resistance (DCR)	75mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max)	0.079" (2.00mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
Standard Package	3,000 pcs
Win Source Part Number	1383669-TMPC 0302H-2R2MG
Ultra Librarian 3D Model	Ultra Librarian TMPC 0302H-2R2MG CAD Model

Alternative Products

Description

The TMPC0302H-2R2MG is a molded fixed inductor with an inductance of 2.2 μH.

Inductance: 2.2 μH
Size: 0.138" L x 0.126" W (3.50mm x 3.20mm)
Height: 0.079" (2.00mm)
Tolerance: ±20%
Core Material: Carbonyl Powder
DC Resistance: 75mOhm Max
Current Rating: 3.5A
Mounting Type: Surface Mountable
Package/Case: Nonstandard
Operating Temperature: -40°C to 125°C
