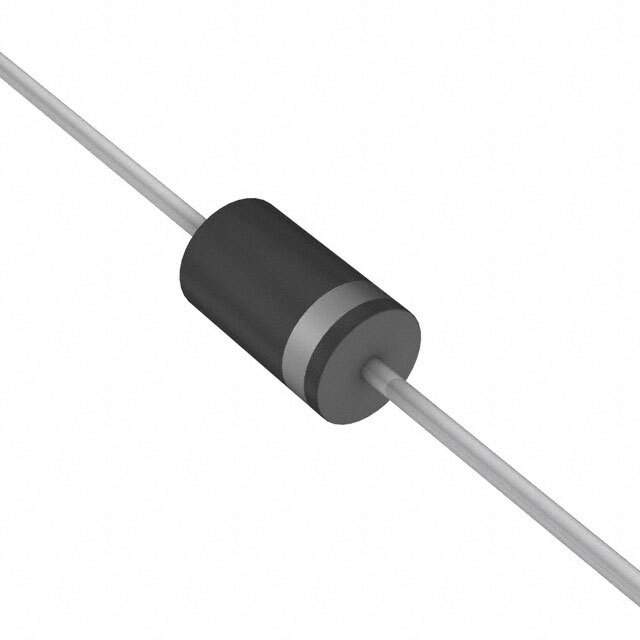

The 1N5822 is a Schottky Barrier Rectifier designed for high-efficiency, low-loss rectification. Manufactured by Taiwan Semiconductor, this diode is commonly used in various electronic applications where fast switching and low forward voltage drop are crucial. It's packaged in a DO-201AD package.

Applications

• Switching power supplies
• Freewheeling diode in inductive circuits
• Reverse polarity protection
• DC-DC converters
• Battery charging circuits
• Solar panel bypass diodes

Features

• High surge current capability: Can withstand high surge currents, enhancing reliability.
• Low forward voltage drop: Minimizes power loss and improves efficiency.
• Fast switching speed: Enables high-frequency operation.
• High reliability: Robust design ensures long-term performance.
• DO-201AD package: Easy to mount and handle.
• High junction temperature: Allows operation in high-temperature environments.

Benefits

• Improved efficiency: Low forward voltage drop reduces power dissipation.
• Fast response: Fast switching speed is ideal for high-frequency applications.
• Enhanced reliability: High surge current capability provides protection against transient events.
• Versatile application: Suitable for a wide range of rectifier applications.
• Simplified design: Easy to integrate into existing circuits.
• Cost-effective: Provides a balance of performance and affordability.

The 1N5822 has a maximum repetitive peak reverse voltage of 40V and a maximum average forward rectified current of 3A. The typical forward voltage drop is around 0.45V at 3A. It can handle a peak surge current of 80A. The operating junction temperature range is -65°C to +125°C. The 'A0' suffix may indicate specific manufacturing or lot variations, but generally does not affect the core electrical characteristics. This diode is a popular choice for applications requiring efficient and reliable rectification.
