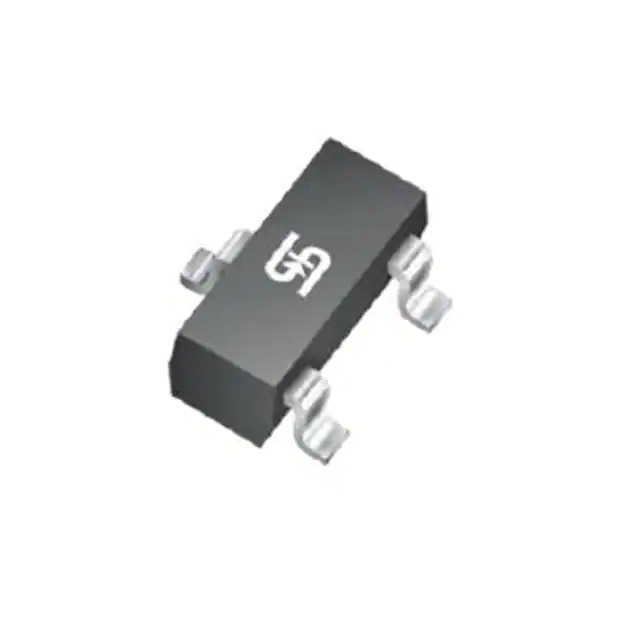

BAS21 RFG Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

BAS21 RFG

Part No BAS21 RFG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 250V 200MA SOT23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 250 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 200 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 100 nA @ 200 V
Capacitance @ Vr, F 5pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number BAS21
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1367332-BAS21 RFG
Ultra Librarian 3D Model Ultra Librarian BAS21 RFG CAD Model

Description

The 1367332-BAS21 RFG is a single diode rectifier from Taiwan Semiconductor Corporation. The product is the 1367332-BAS21 RFG.

  • Package: TO-236-3 (SC-59/SOT-23-3)
  • Mounting Type: Surface Mount
  • Maximum Reverse Voltage: 250V
  • Average Rectified Current: 200mA
  • Forward Voltage: 1.25V @ rated current
  • Recovery Time: 50ns
  • Reverse Leakage Current: 100nA @ rated voltage
  • Operating Temperature: -55°C to 150°C
  • Packaging: Tape and Reel
  • ECCN: EAR99
