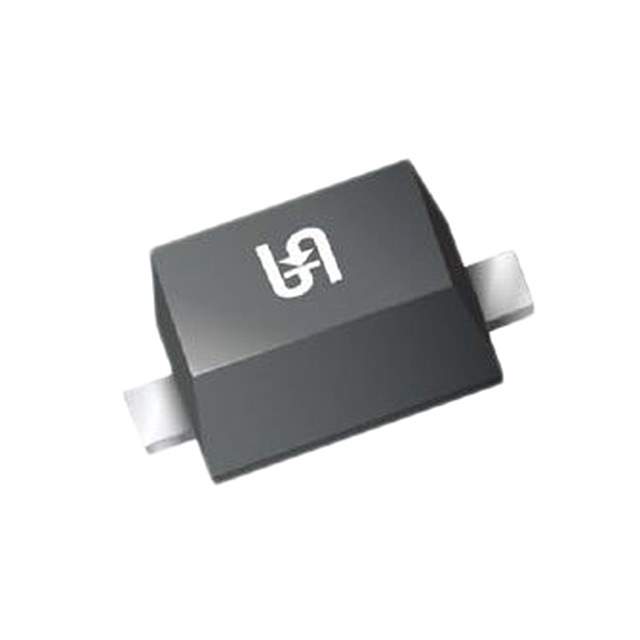

The BZT52B9V1S RRG is a surface-mount Zener diode manufactured by Taiwan Semiconductor. It is designed to provide precise voltage regulation and transient voltage suppression in a wide range of electronic applications. This diode features a compact package, low leakage current, and a sharp breakdown voltage characteristic, making it suitable for protecting sensitive components from overvoltage conditions.

Applications

• Voltage regulation in portable devices
• Transient voltage suppression in automotive electronics
• Overvoltage protection in industrial control systems
• Clipping and clamping circuits in signal processing
• Level shifting in digital circuits

Features

• Surface mount package (SOD-323)
• Zener voltage: 9.1V
• Low reverse leakage current
• High surge current capability
• Excellent clamping capability
• RoHS compliant

Benefits

• Provides stable and accurate voltage regulation
• Protects sensitive electronic components from voltage spikes
• Easy to integrate into compact circuit designs
• Enhances the reliability and lifespan of electronic devices
• Meets environmental standards for restricted substances

Specifications

The BZT52B9V1S RRG has a Zener voltage of 9.1V with a specified tolerance (typically ±5%). The power dissipation is rated at approximately 500mW. The reverse leakage current is very low, typically in the nanoampere range. The operating temperature range is generally from -65°C to +150°C. The forward voltage drop is around 0.9V at a forward current of 10mA. It complies with RoHS standards, ensuring it is free from hazardous substances.
