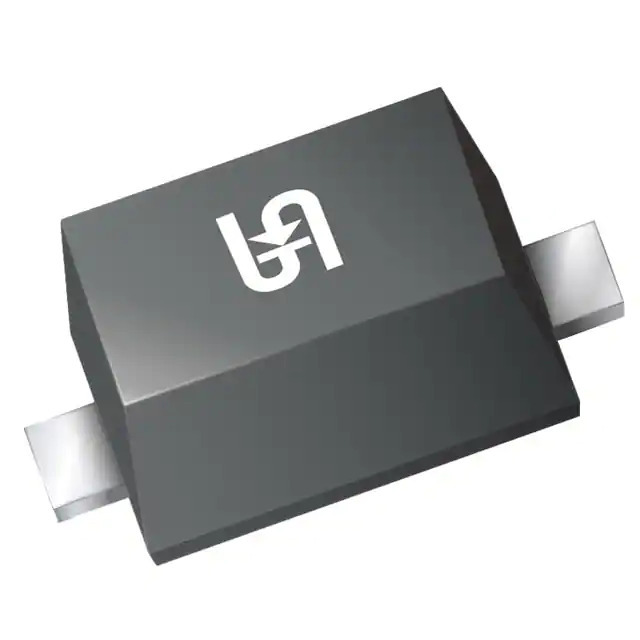

BZT52C56S Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

BZT52C56S

Part No BZT52C56S
Manufacturer Taiwan Semiconductor
Catalog Diodes - Zener - Single
Description SOD-323F, 200MW, 5%, SMALL SIGNA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
Voltage - Zener (Nom) (Vz) 56 V
Tolerance ±5%
Power - Max 200 mW
Impedance (Max) (Zzt) 200 Ohms
Current - Reverse Leakage @ Vr 45 nA @ 39.2 V
Voltage - Forward (Vf) (Max) @ If 1 V @ 10 mA
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SC-90, SOD-323F
Supplier Device Package SOD-323F
Base Product Number BZT52C
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 1367634-BZT52C56S
Ultra Librarian 3D Model Ultra Librarian BZT52C56S CAD Model

Description

The BZT52C56S is a single zener diode designed for surface mount applications. It has a voltage rating of 56V with a tolerance of ±5%.

  • Diode Type: Single Zener Diode
  • Mounting Type: Surface Mount
  • Voltage Rating: 56V
  • Voltage Tolerance: ±5%
  • Forward Voltage: 1V @ 10mA
  • Reverse Leakage Current: 45nA @ 39.2V
  • Power Dissipation: 200mW
  • Impedance: 200 Ohms
  • Package: SC-90 (SOD-323F)
  • Operating Temperature: -65°C to 150°C
