Same model may have multiple batches, images only for reference.

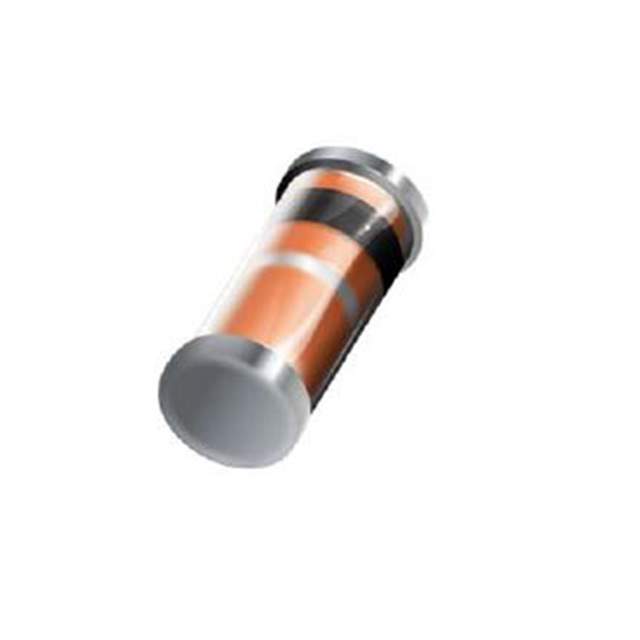

BZV55C2V4 L1 Real Image
Same model may have multiple batches, images only for reference.

BZV55C2V4 L1

Part No BZV55C2V4 L1
Manufacturer Taiwan Semiconductor
Catalog Diodes - Zener - Single
Description Diode Zener Single 2.4V 5% 500mW 2-Pin Mini-MELF T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package MELF
Element Configuration Single
Maximum Operating Temperature 175 °C
Min Operating Temperature -65 °C
Mount Surface Mount
Number of Pins 2
Packaging Tape and Reel
Power Dissipation 500 mW
Radiation Hardening No
RoHS Compliant
Test Current 5 mA
Voltage Tolerance 5 %
Zener Voltage 2.4 V
Win Source Part Number 1050346-BZV55C2V4 L1
Categories Diodes - Zener - Single
Manufacturer Taiwan Semiconductor
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian BZV55C2V4 L1 CAD Model

Description

The Taiwan Semiconductor BZV55C2V4 L1 is a diode-zener-single type electronic component that is designed to operate in a temperature range of -65°C to 175°C.

  • Temperature Range: -65°C to 175°C
  • Voltage Tolerance: 5%
  • Zener Voltage: 2.4 V
  • Power Dissipation: 500 mW
  • Case/Package: MELF
  • Supply and Demand Status: Short
  • Application: diodes - zener - single
  • Compliance: RoHS regulations
  • Element Configuration: single
