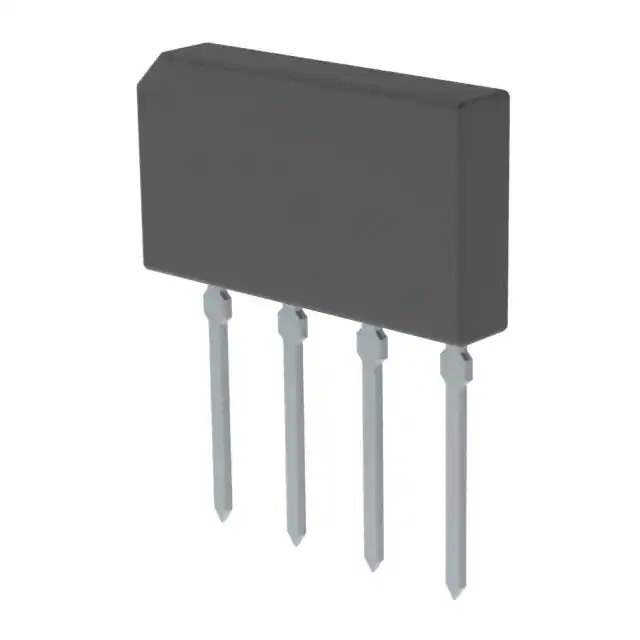

GBL206 Real Image
Same model may have multiple batches, images only for reference.

GBL206

Part No GBL206
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 800V 2A GBL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 2 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBL
Supplier Device Package GBL
Base Product Number GBL206
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 135944-GBL206
Ultra Librarian 3D Model Ultra Librarian GBL206 CAD Model

Description

The 135944-GBL206 is a single-phase bridge rectifier diode.

  • Maximum Peak Reverse Voltage: 800V
  • Average Rectified Current: 2A
  • Forward Voltage: 1V @ 2A
  • Reverse Leakage Current: 5μs @ 800V
  • Mounting Type: Through-Hole
  • Package: 4-SIP GBL
  • Operating Temperature: -55°C to 150°C
  • Manufacturer: Taiwan Semiconductor
