Same model may have multiple batches, images only for reference.

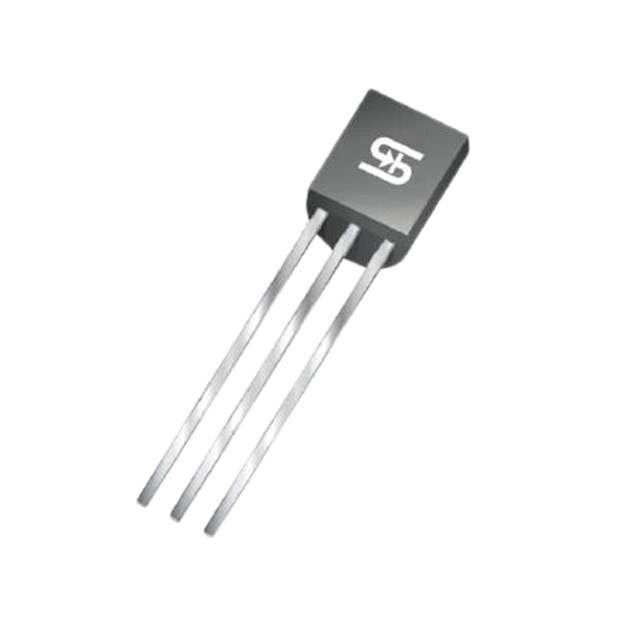

KTC3198-Y B1G Real Image
Same model may have multiple batches, images only for reference.

KTC3198-Y B1G

Part No KTC3198-Y B1G
Manufacturer Taiwan Semiconductor
Catalog Transistors (BJT) - Single
Description TRANSISTOR, NPN, 50V, 0.15A, 300
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Status Active
Transistor Polarity NPN
Maximum Current Collector 150mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Max Vce (sat) 250mV @ 10mA, 100mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 70 @ 2mA, 6V
Maximum Power Dissipation 500mW
Frequency - Transition 80MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-92
Win Source Part Number 1027157-KTC3198-Y B1G
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian KTC3198-Y B1G CAD Model

Description

The KTC3198-Y B1G is an NPN transistor manufactured by Taiwan Semiconductor.

  • Maximum Collector Current: 150mA
  • Collector-Emitter Breakdown Voltage: 50V
  • Maximum Power Dissipation: 500mW
  • Typical Gain: 70 @ 2mA, 6V
  • Maximum Vce (sat): 250mV @ 10mA, 100mA
  • Operating Temperature: -55°C to 150°C
  • Mounting Type: Through-hole
  • Supply: Sufficient
  • Popularity: Medium
