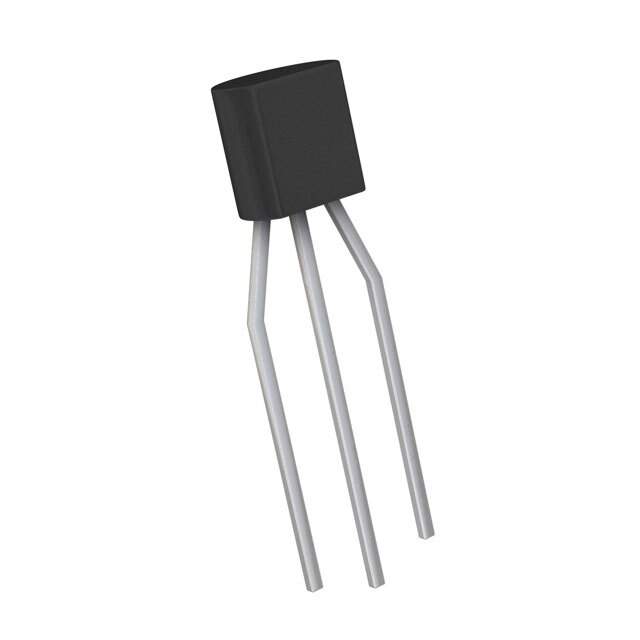

MCR100-6 A1G Real Image
Same model may have multiple batches, images only for reference.

MCR100-6 A1G

Part No MCR100-6 A1G
Manufacturer Taiwan Semiconductor
Catalog SCRs - Single
Description SCR 400V 800MA TO92  /  SCR 400 V 800 mA Sensitive Gate Through Hole TO-92
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Taiwan Semiconductor Corporation
Package Tape & Box (TB)
Product Status Obsolete
Voltage - Off State 400 V
Voltage - Gate Trigger (Vgt) (Max) 800 mV
Current - Gate Trigger (Igt) (Max) 200 µA
Voltage - On State (Vtm) (Max) 1.7 V
Current - On State (It (RMS)) (Max) 800 mA
Current - Hold (Ih) (Max) 5 mA
Current - Off State (Max) 10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 10A @ 60Hz
SCR Type Sensitive Gate
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Through Hole
Package / Case TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Supplier Device Package TO-92
Base Product Number MCR100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names MCR100-6A1G,MCR100-6 A1G-ND
Standard Package 4,000
Win Source Part Number 1108346-MCR100-6 A1G
Ultra Librarian 3D Model Ultra Librarian MCR100-6 A1G CAD Model

Description

Taiwan Semiconductor Corporation introduces the MCR100-6 A1G, a thyristor-SCR electronic component.

  • The specifications of these components include a 400V off-state voltage, a 800mV max gate trigger voltage (Vgt), and a 1.7V max on-state voltage (Vtm).
  • The SCR type is sensitive gate, and the mounting type is through-hole.
  • The package/case is TO-226-3, TO-92-3 (TO-226AA) formed leads, and the supplier device package is TO-92.
