Same model may have multiple batches, images only for reference.

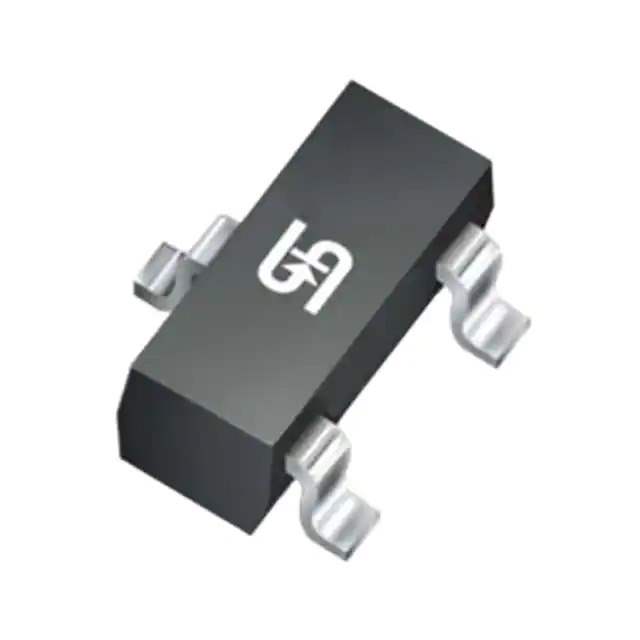

MMBD3004 Real Image
Same model may have multiple batches, images only for reference.

MMBD3004

Part No MMBD3004
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description SOT-23, 350V, 0.225A, SWITCHING
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 350 V
Current - Average Rectified (Io) 225mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 200 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 100 nA @ 240 V
Capacitance @ Vr, F 5pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number MMBD3004
Standard Package 6,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 642152-MMBD3004
Ultra Librarian 3D Model Ultra Librarian MMBD3004 CAD Model

Description

The 642152-MMBD3004 is a fast recovery Schottky diode designed for rectification purposes in electronic circuits.

  • Manufacturer: Taiwan Semiconductor
  • Product: 642152-MMBD3004
  • Type: Fast Recovery Schottky Diode
  • Application: Rectification
  • Voltage: 350V
  • Forward Voltage (Vf @ 200mA): 1.25V
  • Reverse Recovery Time: 50ns
  • Reverse Leakage Current (Ir @ 240V): 100nA (Maximum)
  • Package: TO-236-3 (SC-59, SOT-23-3)
  • Mounting: Surface Mount (SMD)
  • Standard Package: 6,000 pcs
  • Status: Active
