Same model may have multiple batches, images only for reference.

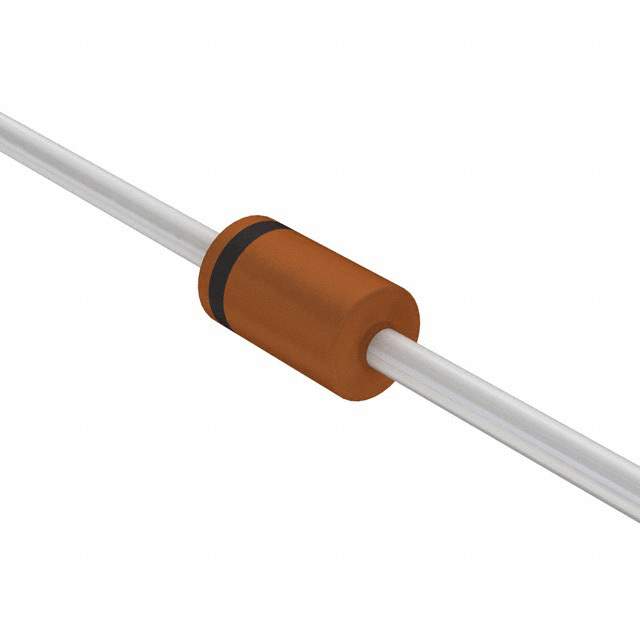

MTZJ5V1SC R0G Real Image
Same model may have multiple batches, images only for reference.

MTZJ5V1SC R0G

Part No MTZJ5V1SC R0G
Manufacturer Taiwan Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 5.23V 500MW DO34 / Zener Diode 5.23 V 500 mW ±2% Through Hole DO-34
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Taiwan Semiconductor Corporation
Package Tape & Reel (TR)
Voltage - Zener (Nom) (Vz) 5.23 V
Tolerance ±2%
Power - Max 500 mW
Impedance (Max) (Zzt) 80 Ohms
Current - Reverse Leakage @ Vr 5 µA @ 1.5 V
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AG, DO-34, Axial
Supplier Device Package DO-34
Base Product Number MTZJ5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Other Names MTZJ5V1SCR0G,MTZJ5V1SC R0G-ND
Standard Package 10,000
Win Source Part Number 966230-MTZJ5V1SC R0G
Ultra Librarian 3D Model Ultra Librarian MTZJ5V1SC R0G CAD Model

Description

The Taiwan Semiconductor Corporation MTZJ5V1SC R0G is a diode-zener-single component that has a power of 500 mW.

  • Power: 500 mW
  • Voltage: 5.23 V (Max)
  • Impedance: 80 Ohms
  • Mounting Type: through-hole
  • Package/Case: DO-204AG, DO-34, Axial
  • Tolerance: ±2%
  • Current Reverse Leakage: 5 µA @ 1.5 V
  • Temperature Range: -55°C to 175°C (TJ)
