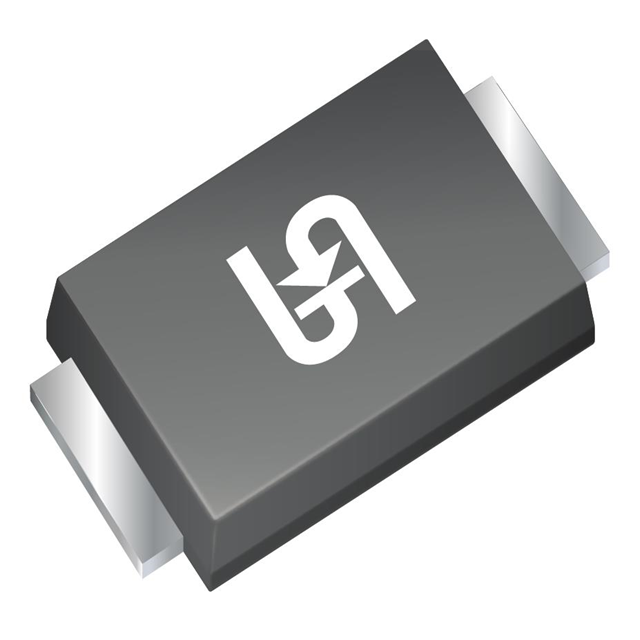

RS1KFSHMWG Real Image
Same model may have multiple batches, images only for reference.

RS1KFSHMWG

Part No RS1KFSHMWG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE / Diode Standard 800 V 1A Surface Mount SOD-128
Datasheet
RS1KFSHMWG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 800 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 500 ns
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Capacitance @ Vr, F 7pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case SOD-128
Supplier Device Package SOD-128
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number RS1K
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names -2068-RS1KFSHMWGDKR,RS1KFSHMWGTR,-2068-RS1KFSHMWGTR-ND,-2068-RS1KFSHMWGTR,RS1KFSHMWGDKR,-2068-RS1KFSHMWGCT,RS1KFSHMWGCT
Standard Package 3,500
Win Source Part Number 1089009-RS1KFSHMWG
Ultra Librarian 3D Model Ultra Librarian RS1KFSHMWG CAD Model

Description

The RS1KFSHMWG is a fast recovery diode from Taiwan Semiconductor Corporation's automotive, AEC-Q101 series.

  • Package: tape & reel
  • Standard Package: 3,500
  • Application: discrete semiconductor products, specifically for diodes - rectifiers - single
  • Maximum Reverse Voltage (Vr): 800V
  • Average Rectified Current (Io): 1A
  • Forward Voltage (Vf): 1.3V @ 1A
  • Reverse Recovery Time (trr): 500ns
  • Capacitance: 7pF @ 4V, 1MHz
  • Current Leakage: 5 microamps @ 800V
  • Operating Temperature Range: -55 degrees Celsius to 150 degrees Celsius
  • Case: SOD-128 case
  • Alternative Part: alternative part (cross-reference) with Win Source part number 1089009
