Same model may have multiple batches, images only for reference.

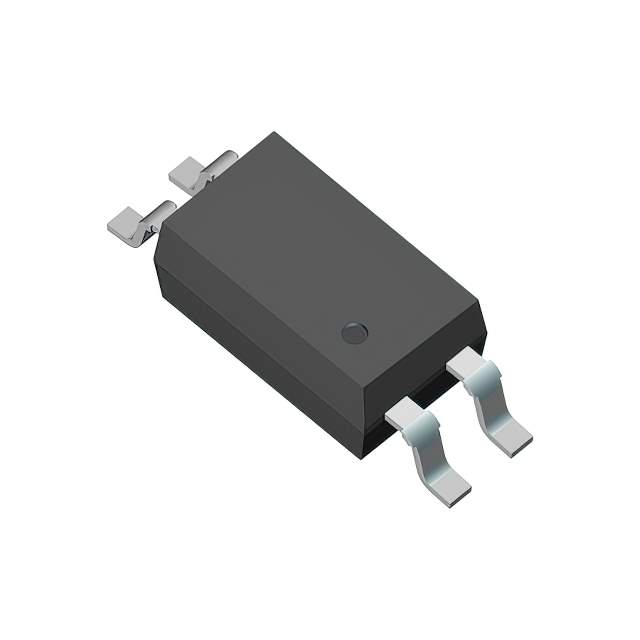

VOS618A-7X001T Real Image
Same model may have multiple batches, images only for reference.

VOS618A-7X001T

Part No VOS618A-7X001T
Manufacturer Vishay
Catalog OEM Parts (T - Z)
Description Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SSOP T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package SSOP
Collector Emitter Saturation Voltage 400 mV
Collector Emitter Voltage (VCEO) 80 V
Current Transfer Ratio 160 %
Fall Time 11 µs
Forward Current 50 mA
Forward Voltage 1.5 V
Max Collector Current 50 mA
Maximum Operating Temperature 110 °C
Max Power Dissipation 170 mW
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Channels 1
Number of Elements 1
Number of Pins 4
Output Type Phototransistor
Power Dissipation 170 mW
Reverse Breakdown Voltage 6 V
Reverse Voltage (DC) 6 V
Rise Time 10 µs
RoHS Compliant
Win Source Part Number 1104018-VOS618A-7X001T
Categories OEM Parts(T-Z)
Manufacturer Vishay
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian VOS618A-7X001T CAD Model

Description

The Vishay VOS618A-7X001T is a phototransistor output optocoupler with a reverse breakdown voltage of 6V and a current transfer ratio of 160%.

  • Compliance: RoHS compliant
  • Maximum Operating Temperature: 110°C
  • Mounting: Surface mountable
  • Case/Package: SSOP
  • Forward Current: 50mA
  • Power Dissipation: 170mW
  • Rise Time: 10μs
  • Fall Time: 11μs
