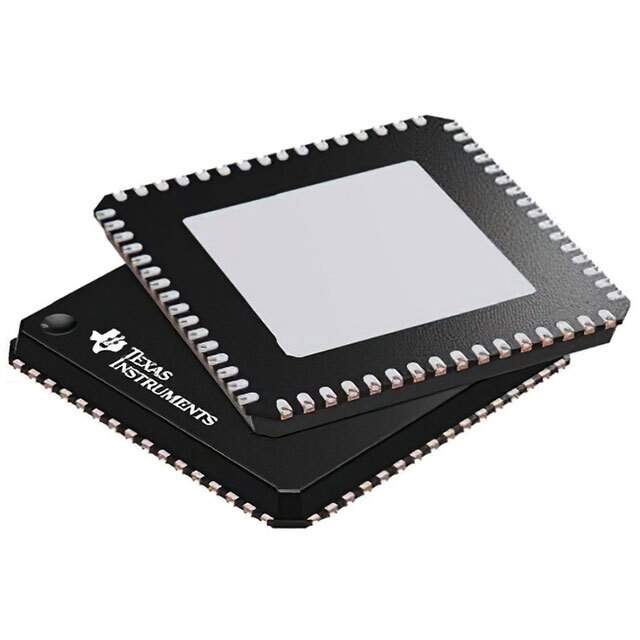

MSP430F149IRTDT Real Image
Same model may have multiple batches, images only for reference.

MSP430F149IRTDT

Part No MSP430F149IRTDT
Manufacturer Texas Instruments
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 60KB FLASH 64VQFN
Datasheet
MSP430F149IRTDT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Core Processor MSP430
Part Core Size 16-Bit
Speed(Frequency) 8MHz
Number of I/O 48
Program Memory Size 60KB (60K x 8 + 256B)
Program Memory Type FLASH
Data RAM Size 2K x 8
Supply Voltage - Operating 1.8 V to 3.6 V
Data Converters A/D 8x12b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 64-VQFN (9x9)
Win Source Part Number 143200-MSP430F149IRTDT
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Sensing & Instrumentation, Automation & Process Control, Motor Drive & Control, Metering, Industrial
Ultra Librarian 3D Model Ultra Librarian MSP430F149IRTDT CAD Model

Description

The MSP430F149IRTDT is a high-performance, versatile microcontroller unit (MCU) produced by Texas Instruments, a leading manufacturer in the semiconductor industry.

  • CPU: 16-bit RISC
  • Power Consumption: Low
  • Voltage Range: 1.8V to 3.6V
  • Oscillator: Built-in 8MHz
  • Flash Memory: 60KB
  • RAM: 2KB
  • ADC: 12-bit analog-to-digital converter
  • Timers: Two 16-bit
  • Communication modules: USART and I2C
  • Brown-out Reset (BOR): Supported
  • Watchdog Timer: Equipped
  • Package: QFN (7x7mm)
