Same model may have multiple batches, images only for reference.

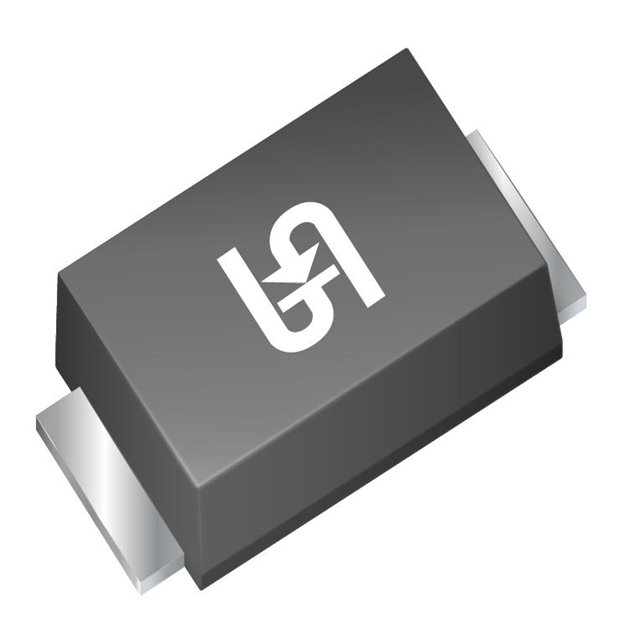

S1JL R2 Real Image
Same model may have multiple batches, images only for reference.

S1JL R2

Part No S1JL R2
Manufacturer Taiwan Semiconductor
Catalog OEM Parts ( S )
Description Taiwan Semi S1JL R2; SMT Switching Diode; 600V 1.5A; 1800ns; 2-Pin Sub SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package SMA
Element Configuration Single
Forward Current 1.5 A
Forward Voltage 1.1 V
Height 1.43 mm
Length 2.9 mm
Max Forward Surge Current (Ifsm) 30 A
Maximum Operating Temperature 175 °C
Max Repetitive Reverse Voltage (Vrrm) 600 V
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Pins 2
Peak Non-Repetitive Surge Current 30 A
Peak Reverse Current 50 µA
Reverse Recovery Time 1.8 µs
RoHS Compliant
Width 1.9 mm
Win Source Part Number 969047-S1JL R2
Categories OEM Parts( S )
Manufacturer Taiwan Semiconductor
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian S1JL R2 CAD Model

Description

The S1JL R2 is a surface mount diode with a case/package of SMA from Taiwan Semiconductor.

  • Package / Case: SMA
  • Forward Voltage: 1.1V
  • Peak Non-Repetitive Surge Current: 30A
  • Forward Current: 1.5A
  • Peak Reverse Current: 50µA
  • Reverse Recovery Time: 1.8µs
  • Maximum Forward Surge Current: 30A
  • Maximum Repetitive Reverse Voltage: 600V
  • Temperature Range: -55°C to 175°C
  • Length: 2.9mm
  • Height: 1.43mm
  • Width: 1.9mm
  • RoHS: Yes
  • Supply and Demand Status: Shortage
