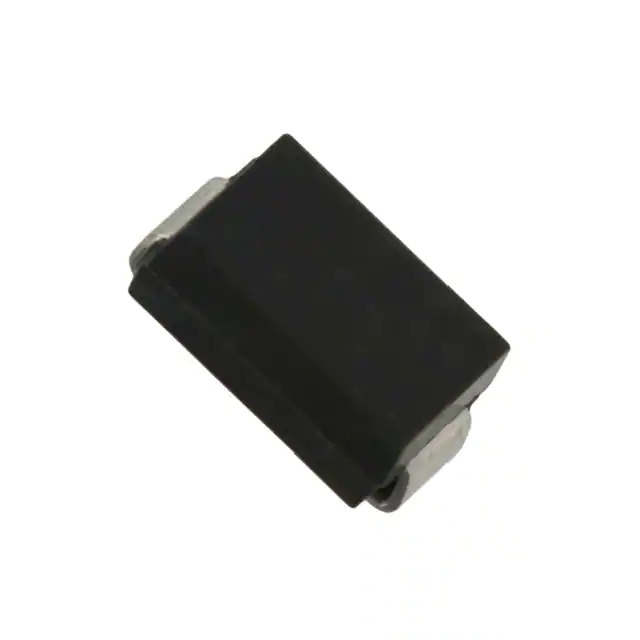

SMBJ36CAHM4G Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

SMBJ36CAHM4G

Part No SMBJ36CAHM4G
Manufacturer Taiwan Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 36VWM 58.1VC DO214AA / 58.1V Clamp 10.8A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101, SMBJ
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V
Voltage - Breakdown (Min) 40V
Voltage - Clamping (Max) @ Ipp 58.1V
Current - Peak Pulse (10/1000µs) 10.8A
Power - Peak Pulse 600W
Power Line Protection No
Applications Automotive
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Base Product Number SMBJ36
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362226-SMBJ36CAHM4G
Ultra Librarian 3D Model Ultra Librarian SMBJ36CAHM4G CAD Model

Description

The SMBJ36CAHM4G is a transient voltage suppressor diode designed for automotive applications. It has a package size of DO-214AA, SMB and is available in a tape and reel package.

  • Package: DO-214AA, SMB
  • Packaging: Tape and Reel
  • Manufacturer: Taiwan Semiconductor Corporation
  • Series: SMBJ
  • Product Status: Active
  • Automotive Standard: AEC-Q101
  • Reverse Standoff Voltage: 36V
  • Breakdown Voltage: 40V
  • Clamping Voltage: 58.1V @ 10.8A
  • Power Rating: 600W
