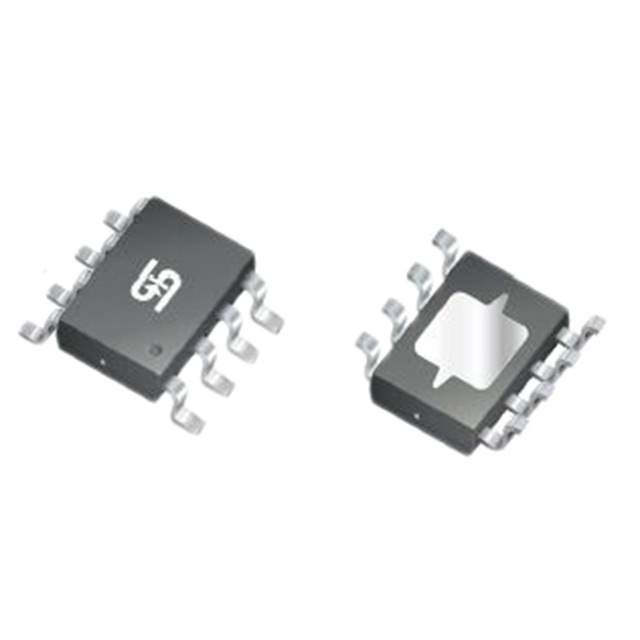

The TS2938CS50RL is a 500mA low dropout (LDO) positive voltage regulator from Taiwan Semiconductor. It is designed to provide a stable and accurate output voltage even when the input voltage is close to the output voltage. This makes it suitable for applications where efficiency and low power consumption are critical.

Applications:

• Battery-powered systems: Ideal for use in portable devices, smartphones, and other battery-operated equipment to regulate voltage and extend battery life.
• Post-regulation for switching power supplies: Provides clean and stable voltage after a switching regulator stage, reducing ripple and noise.
• Microcontroller power supplies: Supplies a stable voltage for microcontrollers and other sensitive digital circuits.
• Linear regulation: Used in applications requiring a clean, low-noise voltage source.
• Power management in embedded systems: Provides a regulated voltage to various components within an embedded system.

Features:

• Low Dropout Voltage: Operates with a minimal difference between input and output voltage, improving efficiency.
• 500mA Output Current: Delivers up to 500mA of current to the load.
• Fixed Output Voltage: Provides a stable 5V output.
• Overcurrent and Thermal Protection: Protects the regulator and the load from damage in case of overcurrent or overheating.
• Reverse Polarity Protection: Prevents damage to the regulator if the input voltage is applied in reverse polarity.
• Stable with Ceramic Output Capacitors: Compatible with low-ESR ceramic capacitors, simplifying design and reducing BOM cost.
• SOT-223 Package: Surface mount package for easy integration into PCBs.

Benefits:

• Increased Efficiency: Low dropout voltage improves efficiency, extending battery life in portable applications.
• Improved System Reliability: Overcurrent and thermal protection features prevent damage to the regulator and the load.
• Simplified Design: Stable with ceramic capacitors, reducing component count and cost.
• Stable Output Voltage: Provides a clean and regulated voltage for sensitive circuits.
• Compact Size: SOT-223 package allows for space-saving designs.

Additional Details:

The TS2938CS50RL is available in a SOT-223 package. It requires an input voltage typically between 5.5V and 16V. The dropout voltage is typically 300mV at 500mA. It is RoHS compliant and lead-free.
