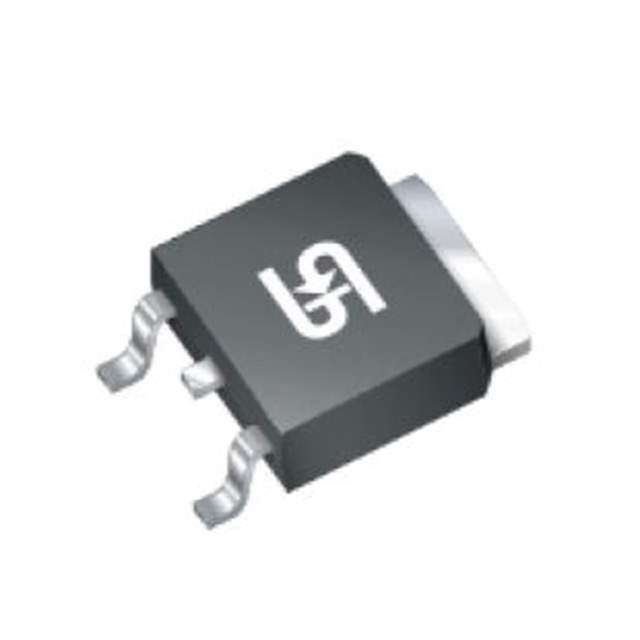

The TS78M05CP RO is a positive voltage regulator manufactured by Taiwan Semiconductor. It is part of the TS78Mxx series, which is designed to provide a fixed output voltage with a higher current capacity compared to the TS78Lxx series. The TS78M05CP RO delivers a stable 5V output, making it suitable for various electronic applications that require a regulated 5V power supply with medium current requirements.

Applications:

• Microcontroller Power Supply: Provides a stable 5V power supply for microcontrollers and digital circuits.
• Sensor Power Supply: Used to power sensors and transducers that require a 5V supply voltage.
• Power Supply for Logic Circuits: Supplies power to various logic circuits, such as TTL and CMOS logic.
• Small Electronic Devices: Employed in various portable devices, consumer electronics, and hobbyist projects requiring regulated 5V power.
• Linear Voltage Regulation: Serves as a general-purpose linear voltage regulator in electronic circuits.

Features:

• Fixed Output Voltage: Delivers a precisely regulated 5V output.
• Output Current Capability: Provides an output current of up to 500mA, suitable for medium-power applications.
• Internal Thermal Overload Protection: Includes thermal shutdown circuitry to protect the regulator from overheating.
• Internal Short-Circuit Current Limiting: Limits the output current during short-circuit conditions, preventing damage to the regulator and the load.
• No External Components Required: Simplifies circuit design with minimal requirements for external components.

Benefits:

• Simplified Circuit Design: Requires minimal external components, reducing the complexity and cost of circuit designs.
• Reliable Voltage Regulation: Ensures a stable and regulated 5V output, enhancing the reliability of connected devices.
• Overload Protection: Built-in thermal and short-circuit protection features safeguard the regulator from damage in fault conditions.
• Higher Current Capability: Offers a higher current output compared to the TS78Lxx series, making it suitable for a wider range of applications.
• Cost-Effective Solution: Offers a cost-effective solution for voltage regulation in medium-power applications.

The TS78M05CP RO typically comes in a through-hole package, facilitating easy mounting and soldering. Its primary function is to provide a stable 5V output, maintaining consistent performance even with variations in input voltage or load current within its specified operating parameters. The integration of thermal overload protection and short-circuit current limiting improves its robustness and helps to protect the regulator from damage under a variety of operating conditions.
