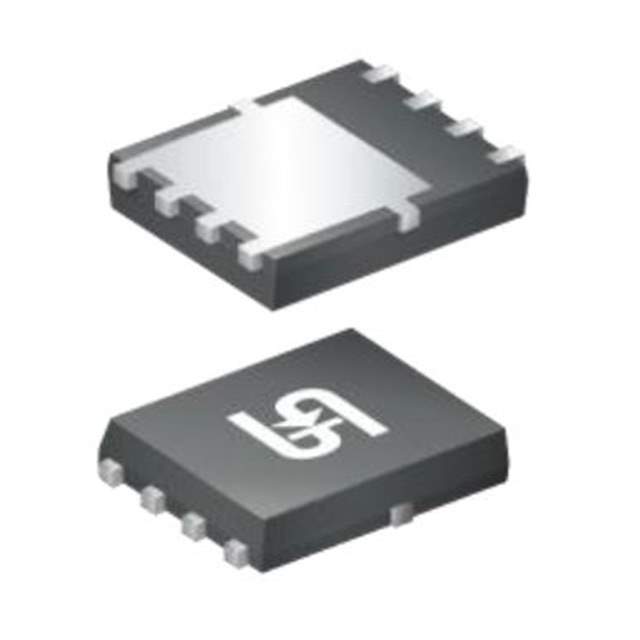

TSM020N04LCR RLG

Part No TSM020N04LCR RLG
Manufacturer Taiwan Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 170A 8PDFN / N-Channel 40 V 170A (Tc) 104W (Tc) Surface Mount 8-PDFN (5x6)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors>FETs, MOSFETs>Single FETs, MOSFETs
Mfr Taiwan Semiconductor
Series -
Package Tape & Reel
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 170A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 2mOhm @ 27A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 150 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 7942 pF @ 20 V
FET Feature -
Power Dissipation (Max) 104W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-PDFN (5x6)
Package / Case 8-PowerTDFN
Base Product Number TSM020
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 2,500 pcs
Win Source Part Number 1383735-TSM020N04LCR RLG
Ultra Librarian 3D Model Ultra Librarian TSM020N04LCR RLG CAD Model

Description

The TSM020N04LCR RLG is an N-channel MOSFET transistor manufactured by Taiwan Semiconductor.

  • Vdss: 40 V
  • Id: 170A @ 25°C
  • Rds On: 2mOhm @ 27A, 10V
  • Vgs(th): 2.5V @ 250μA
  • Power Dissipation: 104W @ Tc
  • Mounting Type: Surface Mount
  • Package: 8-PowerTDFN
  • Qg: 150nC @ 10V
  • Ciss: 7942pF @ 20V
