Same model may have multiple batches, images only for reference.

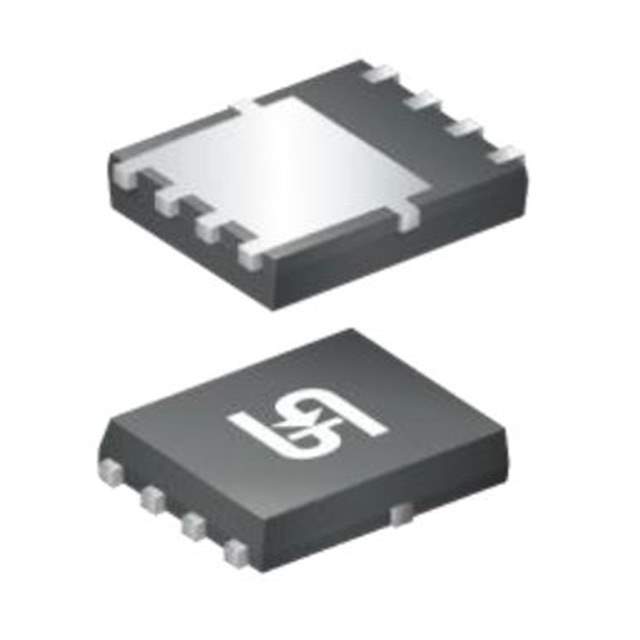

TSM055N03EPQ56 RLG Real Image
Same model may have multiple batches, images only for reference.

TSM055N03EPQ56 RLG

Part No TSM055N03EPQ56 RLG
Manufacturer Taiwan Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 80A 8PDFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 19 Weeks
Features N-Channel 30 V 80A (Tc) 74W (Tc) Surface Mount 8-PDFN (5x6)
Manufacturer Taiwan Semiconductor
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 8-PowerTDFN
Case / Package 8-PDFN (5x6)
Family Name TSM055
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number TSM055N03EPQ56RLGDKR, TSM055N03EPQ56 RLGDKR-ND, TSM055N03EPQ56 RLGTR-ND, TSM055N03EPQ56 RLGDKR, TSM055N03EPQ56 RLGTR, TSM055N03EPQ56RLGCT, TSM055N03EPQ56 RLGCT, TSM055N03EPQ56 RLGCT-ND, TSM055N03EPQ56RLGTR
Quantity per package 2500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 901313-TSM055N03EPQ56 RLG
Ultra Librarian 3D Model Ultra Librarian TSM055N03EPQ56 RLG CAD Model

Description

The TSM055N03EPQ56 RLG is an N-channel power MOSFET manufactured by Taiwan Semiconductor.

  • Type: N-channel power MOSFET
  • Voltage Rating: 30V
  • Current Rating: 80A
  • On-Resistance: 4.5mΩ
  • Switching Speed: Fast switching speed
