TSM110NB04CR RLG

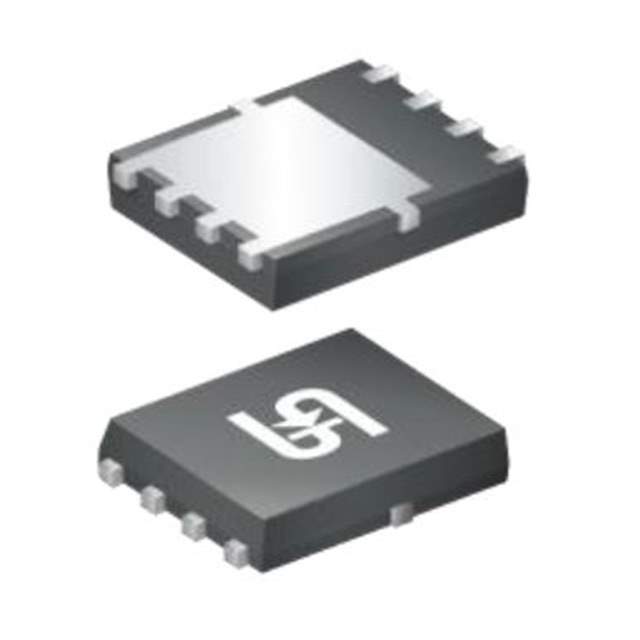

Name: TSM110NB04CR RLG
Brand: Taiwan Semiconductor
SKU: 1383739
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TSM110NB04CR RLG
Manufacturer	Taiwan Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 40V 12A/54A 8PDFN / N-Channel 40 V 12A (Ta), 54A (Tc) 3.1W (Ta), 68W (Tc) Surface Mount 8-PDFN (5x6)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors>FETs, MOSFETs>Single FETs, MOSFETs
Mfr	Taiwan Semiconductor
Series	-
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	12A (Ta), 54A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	11mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	23 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1443 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 68W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PDFN (5x6)
Package / Case	8-PowerTDFN
Base Product Number	TSM110
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Standard Package	2,500 pcs
Win Source Part Number	1383739-TSM110NB04CR RLG
Ultra Librarian 3D Model	Ultra Librarian TSM110NB04CR RLG CAD Model

Alternative Products

Description

The TSM110NB04CR RLG is a N-Channel MOSFET transistor designed for use in discrete semiconductor products, manufactured by Taiwan Semiconductor.

Drain to Source Voltage (Vdss): 40V
Continuous Drain Current (Id): 12A @ 25°C
Rds On (Max): 11mOhm @ 12A and 10V
Gate Charge (Qg): 23nC @ 10V
Package: 8-PowerTDFN
Mounting Type: Surface Mount
Power Dissipation: 3.1W @ Ta and 68W @ Tc
