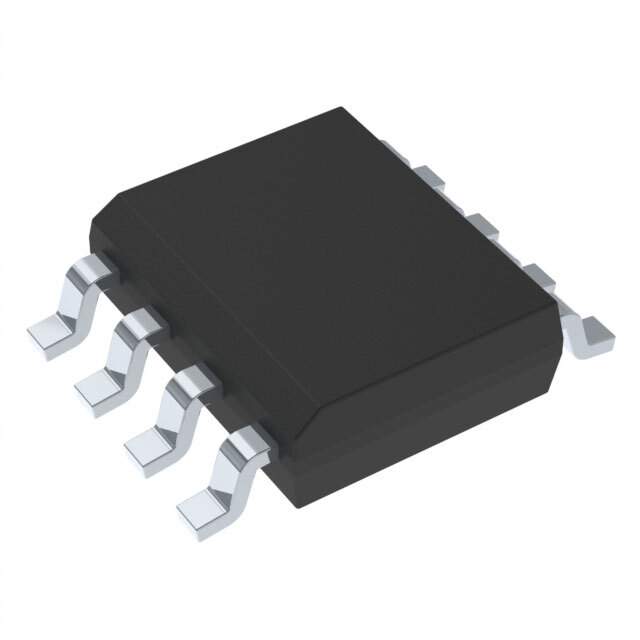

The TSM150P04LCS RLG is a P-Channel Enhancement Mode MOSFET from Taiwan Semiconductor. This MOSFET is designed for load switching, power management, and battery protection applications.

Applications

• Load switching
• Power management
• Battery protection circuits
• DC-DC conversion
• Solid-state relays

Features

• Low on-resistance: Minimizes power loss and improves efficiency.
• High gate threshold voltage: Provides enhanced noise immunity.
• Fast switching speed: Reduces switching losses and improves efficiency.
• Lead-free and RoHS compliant: Meets environmental regulations.
• Low gate charge: Reduces gate drive requirements and improves switching performance.

Benefits

• High efficiency: The low on-resistance minimizes power loss, resulting in higher efficiency and reduced heat dissipation.
• Reliability: Robust design ensures stable performance in demanding applications.
• Simplified thermal management: Lower power dissipation simplifies heat sink design and reduces overall system cost.
• Compliance: Lead-free and RoHS compliant, making it suitable for environmentally conscious applications.
• Improved switching performance: Low gate charge enhances switching speeds and reduces drive requirements.

Additional Details

The TSM150P04LCS RLG is commonly used in portable devices, battery chargers, and power adapters. Its low on-resistance and fast switching speed make it an excellent choice for applications where efficiency is critical. The high gate threshold voltage provides enhanced noise immunity, preventing unwanted switching due to electrical noise. This MOSFET's ability to handle high currents makes it suitable for load switching applications. The lead-free and RoHS compliant design makes it suitable for use in environmentally sensitive applications.
