Same model may have multiple batches, images only for reference.

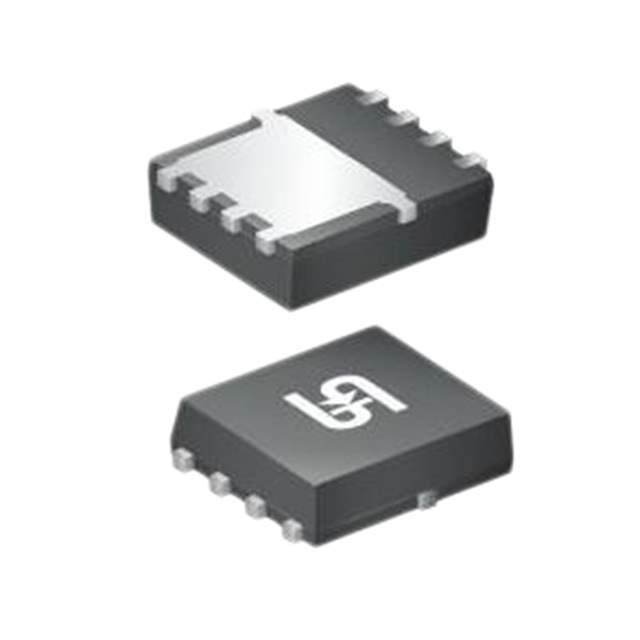

TSM180N03PQ33 RGG Real Image
Same model may have multiple batches, images only for reference.

TSM180N03PQ33 RGG

Part No TSM180N03PQ33 RGG
Manufacturer Taiwan Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET, SINGLE, N-CHANNEL, TRENC
Datasheet
TSM180N03PQ33 RGG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 25A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.5V @ 250μA
Max Gate Charge 4.1nC @ 4.5V
Max Input Capacitance 345pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 21W (Tc)
Maximum Rds On at Id,Vgs 18 mOhm @ 12A, 10V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-PDFN (3x3)
Dimension 8-PowerWDFN
Win Source Part Number 1114715-TSM180N03PQ33 RGG
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian TSM180N03PQ33 RGG CAD Model

Description

The TSM180N03PQ33 RGG is an N-Channel MOSFET manufactured by Taiwan Semiconductor.

  • Category: Discrete Semiconductor Products
  • Packaging: Reel - TR
  • Power Dissipation: 21W
  • Continuous Drain Current: 25A @ 25°C
  • Maximum Rds On @ Id, Vgs: 18 mOhm @ 12A, 10V
