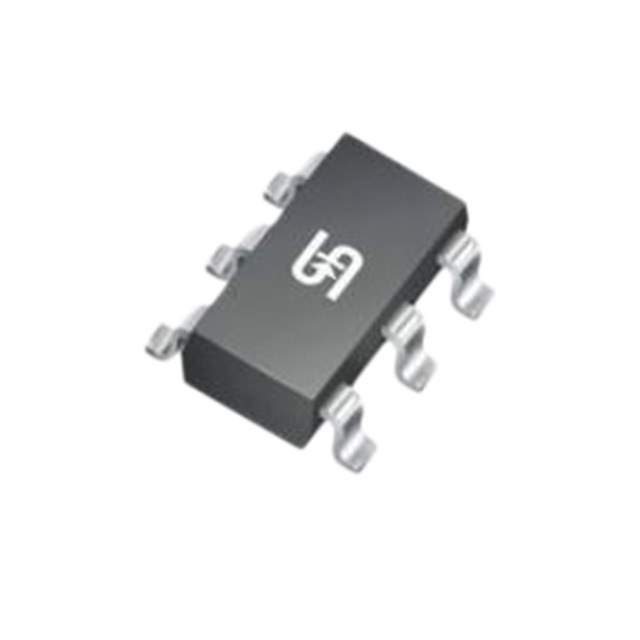

The Taiwan Semiconductor Corporation TSM240N03CX6 RFG is a MOSFET (Metal Oxide) transistor with an N-channel FET type.

• Drain to Source Voltage (Vdss): 30V
• Continuous Drain Current (Id): 6.5A (Tc) @ 25°C
• Rds On (Max) @ Id, Vgs: 24mOhm @ 6A, 10V
• Vgs(th) (Max) @ Id: 2.5V @ 250µA
• Power Dissipation (Max): 1.56W (Tc)
• Package/Case: SOT-23-6
• Supplier Device Package: SOT-26
• Gate Charge (Qg) (Max) @ Vgs: 4.1 nC @ 4.5 V
• Input Capacitance (Ciss) (Max) @ Vds: 345 pF @ 25 V
• Vgs (Max): ±20V
• Operating Temperature Range: 150°C (TJ)
• MSL Level: 1 (unlimited)
• REACH Status: REACH unaffected
• HTSUS: 8541.29.0095
