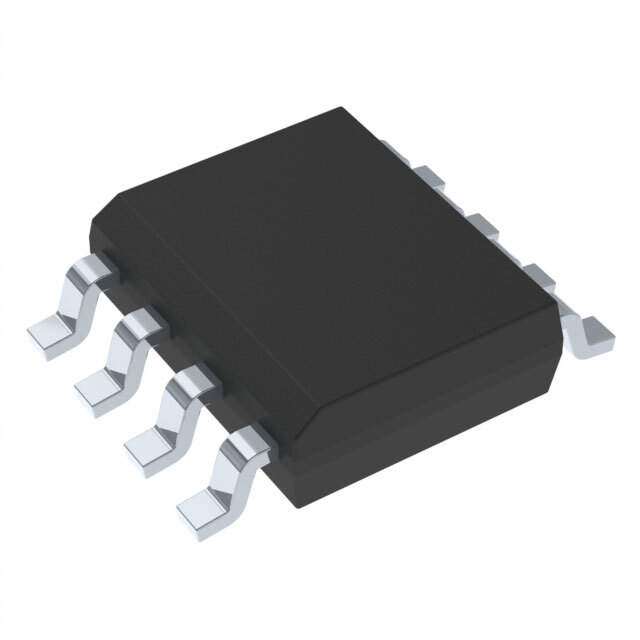

The TSM4459CS is an N-Channel enhancement mode MOSFET from Taiwan Semiconductor. This MOSFET is designed for low voltage, high-speed switching applications, aiming for efficient performance in compact designs. The 'CS' suffix likely indicates a specific package type or feature set.

Applications:

• Load Switching
• Power Management in Portable Devices
• DC-DC Converters
• Battery Management Systems

Features:

• Low On-Resistance: Minimizes conduction losses, improving efficiency.
• Low Gate Threshold Voltage: Enables easy driving with logic-level signals.
• Fast Switching Speed: Reduces switching losses for enhanced efficiency in high-frequency circuits.
• Surface Mount Package: Designed for automated assembly and space-saving designs.

Benefits:

• Increased Energy Efficiency: Low on-resistance minimizes power dissipation, leading to longer battery life and cooler operation.
• Simplified Drive Circuitry: Low gate threshold voltage allows direct interfacing with microcontrollers, simplifying design.
• Compact Design: Surface mount package reduces board space requirements.
• Improved Thermal Performance: Efficient heat dissipation ensures reliable operation.

Additional Details:

The TSM4459CS usually features a drain-source voltage (Vds) rating of 30V, and the continuous drain current (Id) rating varies depending on the package type and operating conditions. It is imperative to consult the manufacturer's datasheet for accurate specifications. The on-resistance (Rds(on)) is a key parameter and is commonly specified at different gate-source voltage (Vgs) levels. Advanced trench technology is often implemented to achieve low on-resistance and gate charge. The typical operating temperature range is from -55°C to +150°C. The 'CS' suffix generally denotes a specific surface mount package (e.g., SOT-23) that affects thermal performance and layout.

When using the TSM4459CS, designers should carefully consider the application's voltage and current demands, as well as the thermal management requirements. Proper heatsinking might be necessary to ensure dependable operation at higher power levels. The gate drive characteristics should be evaluated for optimal switching performance. This MOSFET is a strong contender for low-voltage switching applications where efficiency and size are key considerations.
