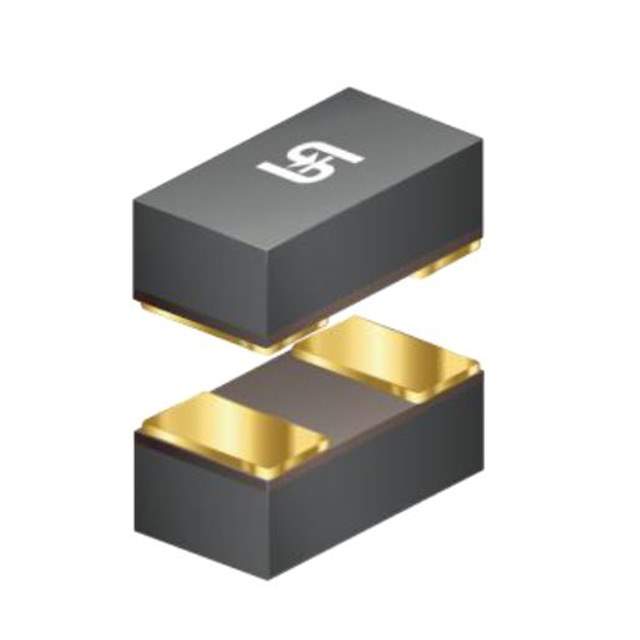

TSS54U RGG

Name: TSS54U RGG
Brand: Taiwan Semiconductor
SKU: 1096138
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSS54U RGG
Manufacturer	Taiwan Semiconductor
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 30V 200MA 0603 / Diode Schottky 30 V 200mA Surface Mount 0603
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Taiwan Semiconductor Corporation
Package	Tape & Reel
Product Status	Not For New Designs
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30 V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1 V @ 100 mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	5 ns
Current - Reverse Leakage @ Vr	2 µA @ 30 V
Capacitance @ Vr, F	10pF @ 1V, 1MHz
Mounting	SMD (SMT)
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Operating Temperature - Junction	-65°C ~ 125°C
Base Product Number	TSS54
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0070
Other Names	TSS54URGGTR,TSS54U RGGCT-ND,TSS54U RGGTR-ND,TSS54U RGGDKR-ND,TSS54U RGGTR,TSS54URGGDKR,TSS54U RGGCT,TSS54URGGCT,TSS54U RGGDKR
Standard Package	4,000
Win Source Part Number	1096138-TSS54U RGG
Ultra Librarian 3D Model	Ultra Librarian TSS54U RGG CAD Model

Alternative Products

Description

The TSS54U RGG is a Schottky diode, with a voltage rating of 30 V and a maximum forward voltage of 1 V @ 100 mA.

Voltage Rating: 30 V
Maximum Forward Voltage: 1 V @ 100 mA
Reverse Recovery Time: 5 ns
Reverse Leakage Current: 2 µA @ 30 V
Average Rectified Current: 200 mA
Package: 0603 (1608 Metric) SMD package
Supplied: Tape and reel
Capacitance: 10pF @ 1V and 1MHz
Junction Temperature Range: -65°C to 125°C
Manufacturer: Taiwan Semiconductor Corporation
Alternative Parts: TSS54URGGTR, TSS54U RGGCT-ND, TSS54U RGGTR-ND, TSS54U RGGDKR-ND, TSS54U RGGTR, TSS54URGGDKR, TSS54U RGGCT, TSS54URGGCT, and TSS54U RGGDKR
