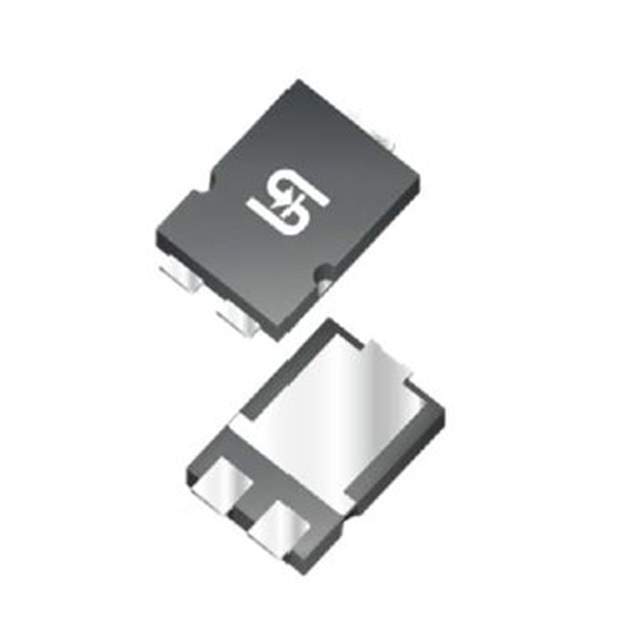

TSP12U120S S1G Real Image
Same model may have multiple batches, images only for reference.

TSP12U120S S1G

Part No TSP12U120S S1G
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 120V 12A TO277A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Taiwan Semiconductor Corporation
Packaging Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 120V
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Maximum) at If 780mV at 12A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 500μA at 120V
Mounting Style SMD
Manufacturer Package TO-277, 3-PowerDFN
Supplier Device Package TO-277A (SMPC)
Operating Temperature - Junction -55°C ~ 150°C
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806411-TSP12U120S S1G
Ultra Librarian 3D Model Ultra Librarian TSP12U120S S1G CAD Model

Description

The Taiwan Semiconductor Corporation Schottky Diode is a fast recovery diode with a maximum voltage of 120V and a current rating of 12A.

  • Maximum Voltage: 120V
  • Current Rating: 12A
  • Package: TO-277A (SMPC)
  • Forward Voltage: 780mV @ 12A
  • Reverse Leakage Current: 500μA @ 120V
