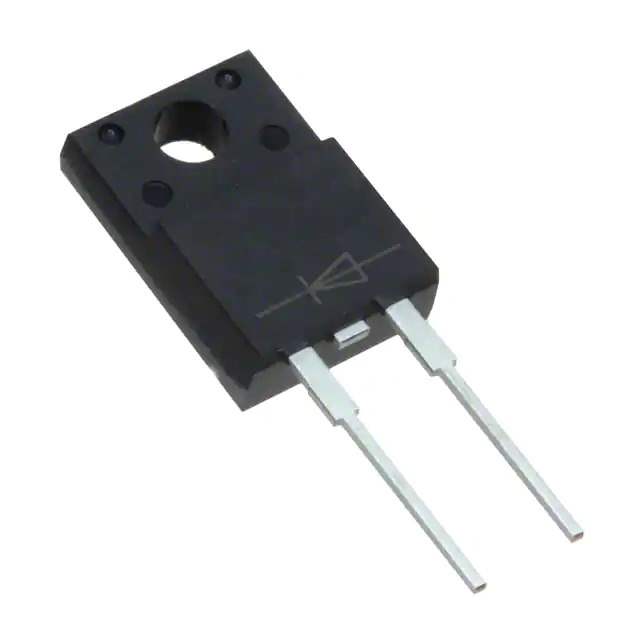

Same model may have multiple batches, images only for reference.

UGF8J

Name: UGF8J
Brand: Taiwan Semiconductor
SKU: 694339
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UGF8J
Manufacturer	Taiwan Semiconductor
Catalog	Diodes, Rectifiers - Single
Description	DIODE GEN PURP 600V 8A ITO220AC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	Taiwan Semiconductor
Package	Tube
Product Status	Active
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	600 V
Current - Average Rectified (Io)	8A
Voltage - Forward (Vf) (Max) @ If	2.9 V @ 8 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	25 ns
Current - Reverse Leakage @ Vr	30 µA @ 600 V
Mounting Type	Through Hole
Package / Case	TO-220-2 Full Pack
Supplier Device Package	ITO-220AC
Operating Temperature - Junction	-55°C ~ 150°C
Base Product Number	UGF8
Standard Package	50 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	694339-UGF8J
Ultra Librarian 3D Model	Ultra Librarian UGF8J CAD Model

Alternative Products

Description

The 694339-UGF8J is a standard single diode rectifier designed for general-purpose applications.

Maximum Reverse Voltage: 600 V
Average Rectified Current: 8 A
Forward Voltage: 2.9 V @ 8 A
Reverse Recovery Time: 25 ns
Reverse Leakage Current: 30 µA @ 600 V
Mounting Type: Through-Hole
Package: TO-220-2 Full Pack
Operating Temperature: -55°C to 150°C
Manufacturer: Taiwan Semiconductor
Product Status: Active
