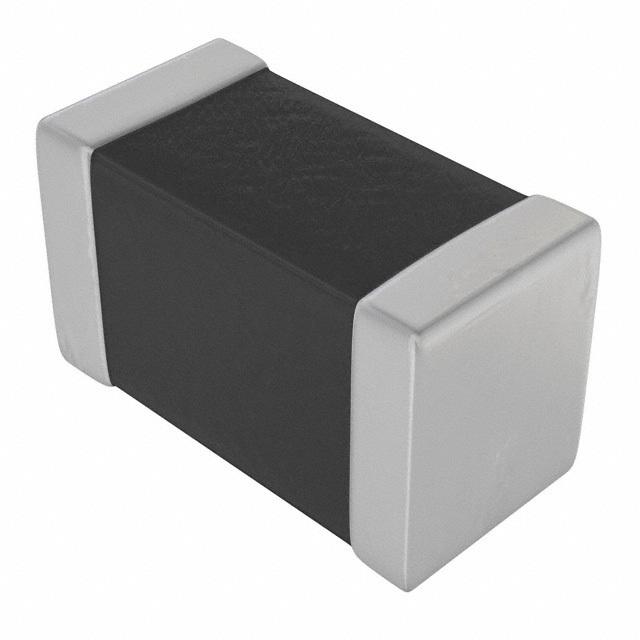

The EMK316BJ475KL-T is a multilayer ceramic capacitor (MLCC) manufactured by Taiyo Yuden. This capacitor features a nominal capacitance of 4.7 µF (microfarads), a voltage rating of 25V, and is designed for general-purpose applications in electronic circuits. MLCCs are widely used due to their small size, high reliability, and excellent performance characteristics.

Applications:

• Bypass Capacitors: Used to decouple noise on power supply lines.
• Filtering: Employed in filtering circuits to remove unwanted frequencies.
• Smoothing: Utilized in smoothing circuits to reduce voltage ripple.
• Timing Circuits: Incorporated in timing circuits to control the timing of events.
• DC Blocking: Used to block DC voltage while allowing AC signals to pass.

Features:

• High Capacitance: 4.7 µF capacitance in a compact size.
• Voltage Rating: 25V voltage rating for general-purpose applications.
• X5R Dielectric: Stable capacitance over temperature and voltage.
• Surface Mount Technology (SMT): Designed for automated assembly processes.
• RoHS Compliant: Complies with the Restriction of Hazardous Substances directive.

Benefits:

• Reliable Performance: Consistent performance over a wide range of operating conditions.
• Space-Saving Design: Compact size allows for high-density circuit layouts.
• Improved Circuit Stability: Helps to stabilize voltage levels and reduce noise.
• Easy Integration: Simple to integrate into electronic circuits using SMT.
• Environmentally Friendly: Complies with RoHS standards, reducing environmental impact.

Additional Details:

The EMK316BJ475KL-T capacitor uses an X5R dielectric material, which provides stable capacitance characteristics over a temperature range of -55°C to +85°C. The case size is typically 1206 (3.2mm x 1.6mm). The tolerance is +/- 10%. It is designed for reflow soldering processes. The capacitor exhibits low equivalent series resistance (ESR) and equivalent series inductance (ESL), making it suitable for high-frequency applications. The part is lead-free. Proper storage conditions and handling procedures should be followed to prevent damage to the capacitor.
