Same model may have multiple batches, images only for reference.

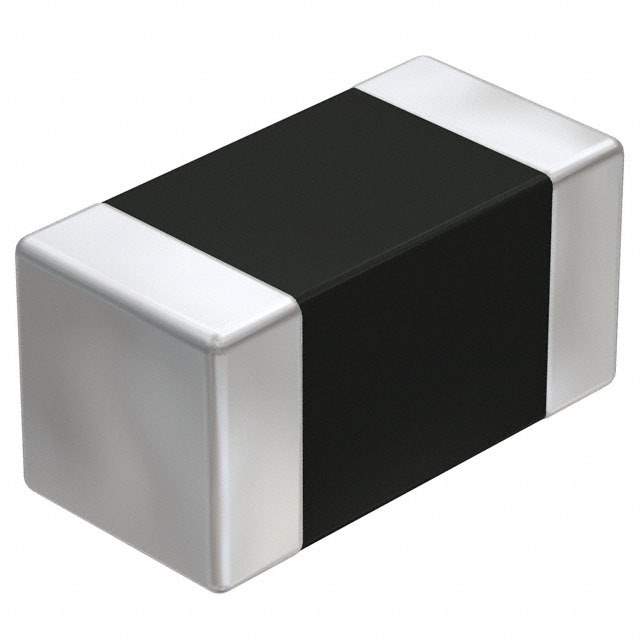

EVK105CH3R3JW-F Real Image
Same model may have multiple batches, images only for reference.

EVK105CH3R3JW-F

Part No EVK105CH3R3JW-F
Manufacturer Taiyo Yuden
Catalog Ceramic Capacitors
Description CAP CER 3.3PF 16V C0H 0402  /  3.3 pF ±5% 16V Ceramic Capacitor C0H 0402 (1005 Metric)
Datasheet
EVK105CH3R3JW-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Taiyo Yuden
Series V
Package Tape & Reel (TR)
Product Status Last Time Buy
Capacitance 3.3 pF
Tolerance ±5%
Voltage - Rated 16V
Temperature Coefficient C0H
Temperature Range - Operating -55°C ~ 125°C
Features High Q, Low Loss
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.020" (0.52mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names EVK105CH3R3JWF,RV EVK105 CH3R3JW-F
Standard Package 10,000
Win Source Part Number 1005159-EVK105CH3R3JW-F
Ultra Librarian 3D Model Ultra Librarian EVK105CH3R3JW-F CAD Model

Description

The V series capacitor is a ceramic capacitor used for RF, microwave, and high-frequency applications.

  • Capacitance: 3.3 pF
  • Tolerance: ±5%
  • Voltage Rating: 16V
  • Temperature Coefficient: C0H
  • Package: Tape and Reel (TR)
  • Dimension: 0.039 inches L x 0.020 inches W (1.00mm x 0.50mm)
  • Mounting Type: Surface Mount, MLCC
  • Package/Case: 0402 (1005 Metric)
  • Operating Temperature: -55°C to 125°C
