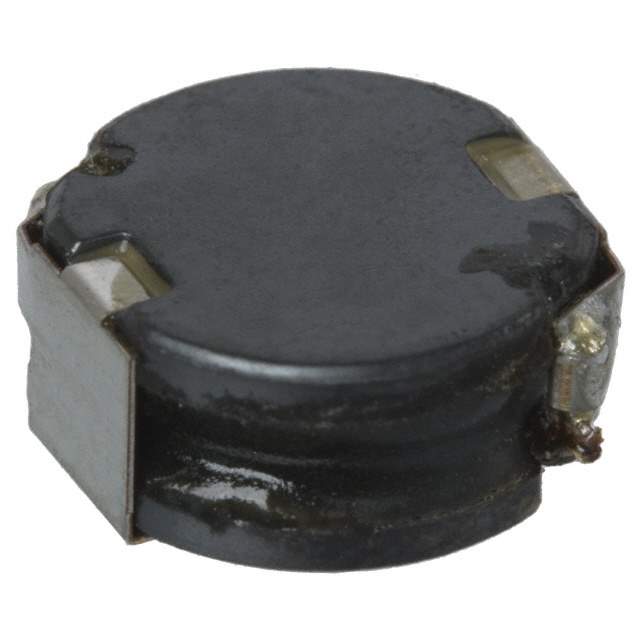

NR10050T101M Real Image
Same model may have multiple batches, images only for reference.

NR10050T101M

Part No NR10050T101M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 100UH 1.2A 271.7 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±20%
Current Rating 1.2A
Current - Saturation 1.3A
DC Resistance (DCR) 271.7 mOhm Max
Frequency - Self Resonant 4.6MHz
Temperature Range - Operating -25°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 025642-NR10050T101M
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian NR10050T101M CAD Model

Description

The Taiyo Yuden NR10050T101M is a wirewound type inductor with a current rating of 1.2A and an inductance of 100μH.

  • Height: 0.197" (5.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Current Saturation: 1.3A
  • Self-Resonant Frequency: 4.6MHz
  • Test Frequency: 100kHz
  • Temperature Range: -25°C to 105°C
  • Packaging: Reel - TR
  • Quantity per Package: 500
