Same model may have multiple batches, images only for reference.

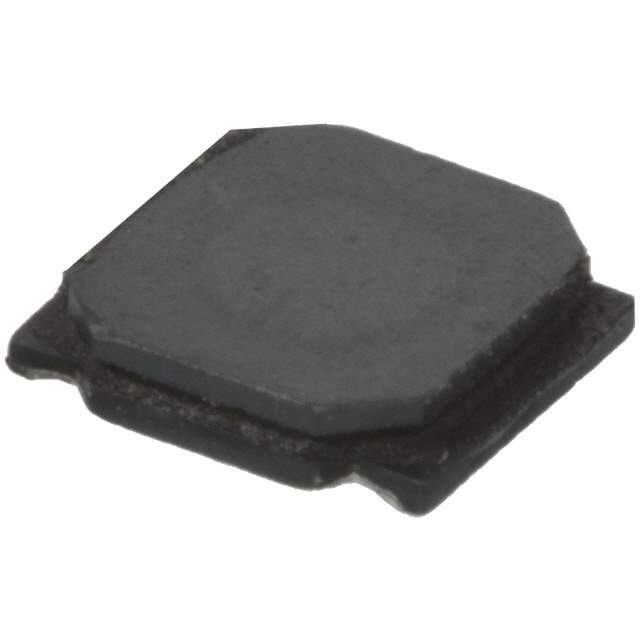

NR4010T220M Real Image
Same model may have multiple batches, images only for reference.

NR4010T220M

Part No NR4010T220M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 22UH 400MA 1.044 OHM
Datasheet
NR4010T220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 400mA
Current - Saturation 360mA
DC Resistance (DCR) 1.044 Ohm Max
Frequency - Self Resonant 19MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 105709-NR4010T220M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian NR4010T220M CAD Model

Description

The Taiyo Yuden 105709-NR4010T220M is a wirewound inductor with a ferrite core. It has a current rating of 400mA and an inductance of 22μH.

  • Type: Wirewound
  • Core Material: Ferrite
  • Current Rating: 400mA
  • Inductance: 22μH
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Saturation Current: 360mA
  • Self-Resonant Frequency: 19MHz
  • DC Resistance (DCR): 1.044 Ohm Max
  • Operating Temperature: -25°C to 120°C
  • Packaging: Reel
  • Height: 0.039" (1.00mm)
  • Supply and Demand Status: Balanced
  • Quantity per Package: 5k pcs
