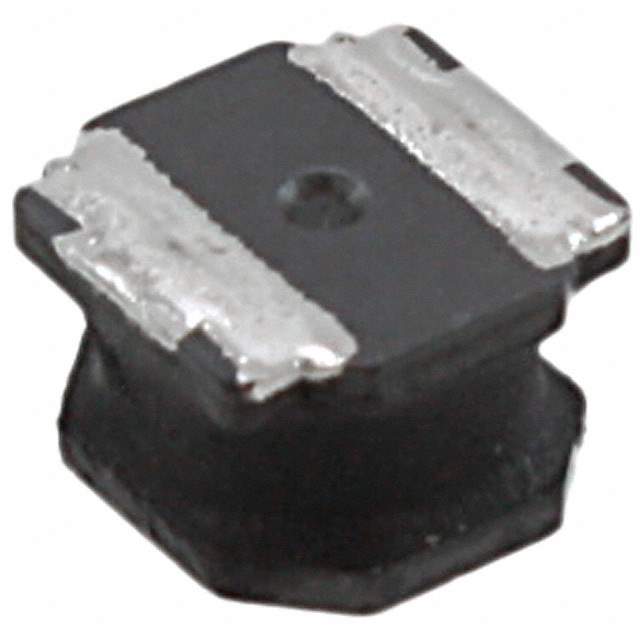

Same model may have multiple batches, images only for reference.

NR6045T680M

Name: NR6045T680M
Brand: Taiyo Yuden
SKU: 259322
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NR6045T680M
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 68UH 900MA 429 MOHM
Datasheet	NR6045T680M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Taiyo Yuden
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	68μH
Tolerance	±20%
Current Rating	900mA
Current - Saturation	1A
DC Resistance (DCR)	429 mOhm Max
Frequency - Self Resonant	4MHz
Temperature Range - Operating	-25°C to 120°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.177" (4.50mm)
Win Source Part Number	094498-NR6045T680M
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Quantity per package	1,500
Ultra Librarian 3D Model	Ultra Librarian NR6045T680M CAD Model

Alternative Products

Description

The NR6045T680M is an electronic component manufactured by Taiyo Yuden.

Type: Wirewound
Current Rating: 900mA
Inductance: 68μH
Height: 0.177" (4.50mm)
Mounting Type: SMD (SMT)
Tolerance: ±20%
Core Material: Ferrite
Current Saturation: 1A
Self-Resonant Frequency: 4MHz
Demand and Supply Status: High
