Same model may have multiple batches, images only for reference.

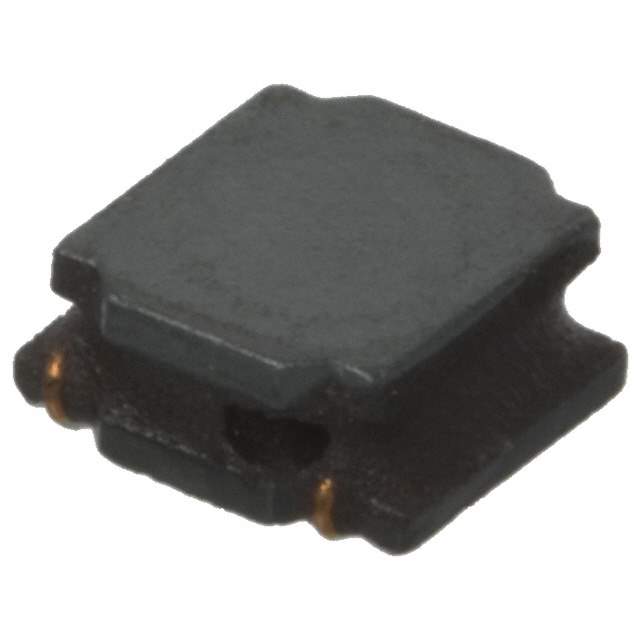

NRS2012T1R0NGJ Real Image
Same model may have multiple batches, images only for reference.

NRS2012T1R0NGJ

Part No NRS2012T1R0NGJ
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 1UH 1.7A 70 MOHM SMD / Inductor Power Shielded Wirewound 1uH 30% 100KHz Ferrite 1.7A 0.084Ohm DCR T/R
Datasheet
NRS2012T1R0NGJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±30%
Current Rating 1.7A
Current - Saturation 1.9A
DC Resistance (DCR) 70 mOhm
Ratings AEC-Q200
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 045367-NRS2012T1R0NGJ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 2,500
Family Name NR
Introduction Date February 10, 2012
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian NRS2012T1R0NGJ CAD Model

Description

The Taiyo Yuden NRS2012T1R0NGJ is a high-quality wirewound inductor that is ideal for use in a wide range of applications.

  • NR Family: Known for its high-performance and reliability
  • Design: Compact and lightweight
  • Package: Reel
  • Current Rating: 1.7A
  • Inductance: 1μH
  • Height-Seated (max): 0.047" (1.20mm)
  • Mounting Type: SMD (SMT)
  • Tolerance: ±30%
  • Ratings: AEC-Q200
  • Material-Core: Ferrite
  • Current-Saturation: 1.9A
  • DC Resistance (DCR): 70 mOhm
  • Temperature Range: -40°C to 125°C
  • Quantity per Package: 2,500
