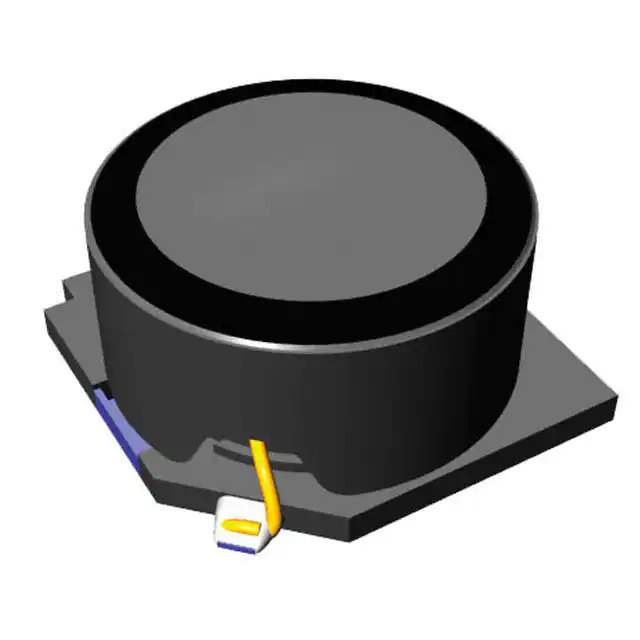

NS12555T101MN

Name: NS12555T101MN
Brand: Taiyo Yuden
SKU: 649501
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NS12555T101MN
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 100UH 1.86A 140.4 MOHM
Datasheet	NS12555T101MN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Taiyo Yuden
Series	NS
Package	Tape & Reel
Product Status	Not For New Designs
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±20%
Current Rating (Amps)	1.86 A
Current - Saturation (Isat)	1.53A
Shielding	Shielded
DC Resistance (DCR)	140.4mOhm Max
Frequency - Self Resonant	6.7MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.230" (5.85mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	649501-NS12555T101MN
Ultra Librarian 3D Model	Ultra Librarian NS12555T101MN CAD Model

Alternative Products

Description

The NS12555T101MN is a fixed inductor with a drum core and wirewound construction.

Manufacturer: Unknown
Product: NS12555T101MN
Type: Fixed Inductor
Core: Drum core
Construction: Wirewound
Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height: 0.230" (5.85mm)
Inductance: 100μH
Tolerance: ±20%
Mounting: Surface Mount
Packaging: Tape and Reel
Shielding: Shielded
DC Resistance: 140.4mOhm (Maximum)
Current Rating: 1.86A
Applications: Power supplies, DC-DC converters
