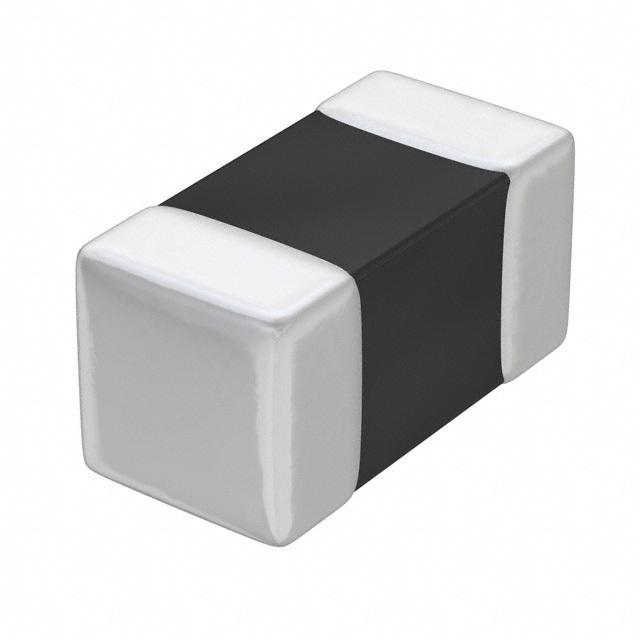

The TMK063CG470JT-F is a multilayer ceramic capacitor (MLCC) manufactured by Taiyo Yuden. It's a compact and highly reliable capacitor designed for general-purpose applications in electronic circuits. Its small size and excellent electrical characteristics make it suitable for use in a wide range of devices.

Applications

• Mobile phones and smartphones
• Tablets and other portable devices
• Consumer electronics (e.g., TVs, audio equipment)
• Power supplies
• Decoupling applications
• Filtering applications

Features

• Capacitance: 47pF
• Voltage Rating: 16V
• Temperature Coefficient: C0G
• Tolerance: ±5%
• Size Code: 0201 (0603 Metric)
• Termination: Nickel barrier with tin plating
• RoHS Compliant: Yes

Benefits

• Small Size: The 0201 case size allows for high-density mounting on printed circuit boards (PCBs), saving valuable space in compact electronic devices.
• High Reliability: MLCCs are known for their high reliability and long lifespan, ensuring stable performance in demanding applications.
• Stable Capacitance: The C0G temperature coefficient ensures that the capacitance value remains relatively stable over a wide temperature range, making it suitable for applications where temperature stability is critical.
• Low ESR (Equivalent Series Resistance): Low ESR contributes to minimal power loss and improved performance in high-frequency circuits.
• Excellent Frequency Characteristics: MLCCs exhibit excellent frequency characteristics, making them suitable for use in high-frequency applications.
• RoHS Compliant: Lead-free and compliant with RoHS directives, making it environmentally friendly.

Additional Details

The TMK063CG470JT-F uses a C0G (NP0) dielectric material, which provides exceptional stability with respect to temperature and voltage. The capacitor is designed for reflow soldering and is supplied in tape and reel packaging for automated assembly.

Specifications:

• Capacitance: 47 pF
• Capacitance Tolerance: ±5%
• Voltage Rating: 16 VDC
• Temperature Coefficient: C0G (0 ±30 ppm/°C)
• Operating Temperature Range: -55°C to +125°C
• Case Size: 0201 (0.6mm x 0.3mm)
• Thickness: 0.3 mm
