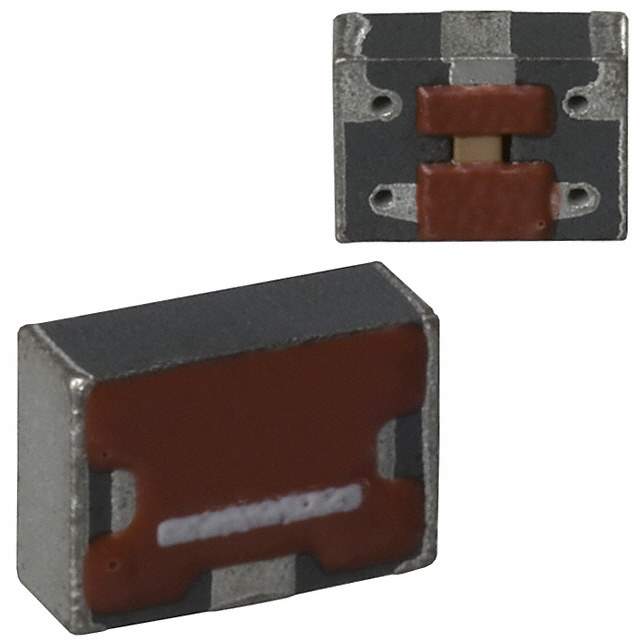

ACF451832-472-TD01 Real Image
Same model may have multiple batches, images only for reference.

ACF451832-472-TD01

Part No ACF451832-472-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACF451832-472-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 25MHz to 90MHz
Resistance - Channel (Ohms) 0.15
Current 300mA
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height 0.079" (2.00mm)
Win Source Part Number 007816-ACF451832-472-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACF451832-472-TD01 CAD Model

Description

Features and Benefits

  • High performance and reliability
  • Compact and lightweight design
  • Excellent thermal stability
  • Wide frequency range

Applications

  • RF matching circuits
  • Mobile communication devices
  • Wireless LAN
  • Bluetooth modules

Additional Details

The ACF451832-472-TD01 is designed to deliver superior electrical performance in demanding environments. Its compact design makes it ideal for modern electronic devices where space is at a premium. The high thermal stability ensures reliable performance over a wide temperature range, making it ideal for various commercial and industrial applications.
