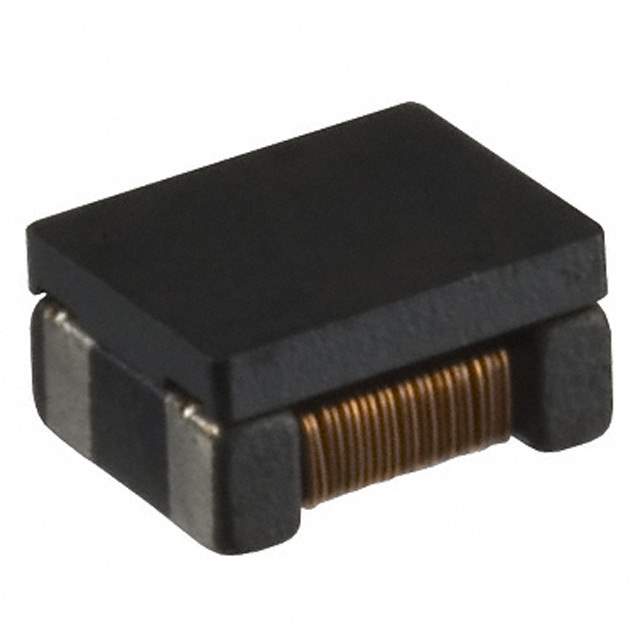

ACM2520-102-2P Real Image
Same model may have multiple batches, images only for reference.

ACM2520-102-2P

Part No ACM2520-102-2P
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 200MA 2LN 1 KOHM SMD
Datasheet
ACM2520-102-2P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 1 kOhm @ 100MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 900 mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 092099-ACM2520-102-2P
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM2520-102-2P CAD Model

Description

Product Description for ACM2520-102-2P

The ACM2520-102-2P is a high-performance common mode choke designed to suppress electromagnetic interference (EMI) in various applications. Built with precision, this component ensures the smooth operation of your electronic devices by effectively reducing noise and enhancing signal reliability.

  • Applications and Projects:
    • Power supply circuits
    • Communication devices
    • Audio-visual equipment
    • Industrial control systems
    • Home appliances
  • Features and Benefits:
    • Compact design for easy integration
    • High common mode impedance, ensuring effective EMI suppression
    • Wide frequency range performance
    • Improves signal integrity and noise reduction
    • Reliable and durable construction
  • Additional Details:
    • Operating Temperature Range: -40°C to +85°C
    • RoHS Compliant
