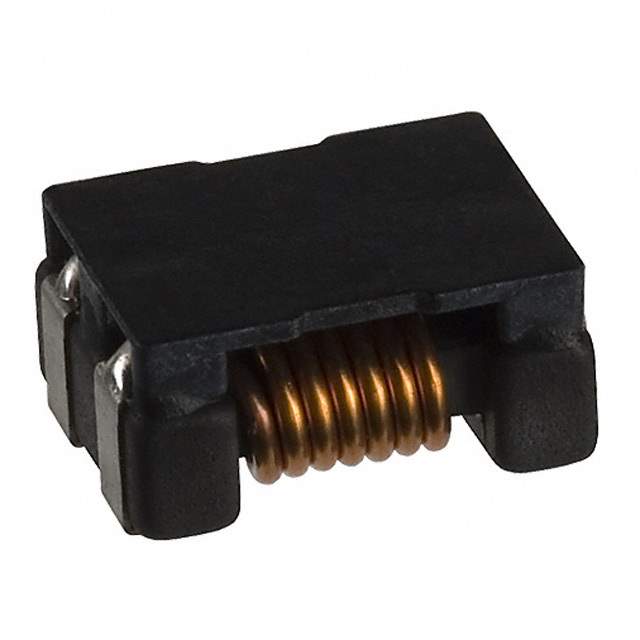

The ACM90V-701-2PL is a common mode choke manufactured by TDK Corporation. Common mode chokes are used to suppress common-mode noise in electronic circuits. TDK is a leading manufacturer of electronic components, including a wide variety of chokes and filters.

Applications:

• Suppression of common mode noise in power lines
• Filtering noise in USB, HDMI, and other data interfaces
• Noise reduction in signal lines
• EMI (Electromagnetic Interference) suppression in electronic devices
• Used in power supplies and inverters to reduce noise emissions

Features:

• High common mode impedance
• Low differential mode impedance
• Compact size
• High current handling capability
• Excellent noise suppression characteristics

Benefits:

• Reduces electromagnetic interference (EMI)
• Improves signal integrity
• Enhances system reliability
• Meets regulatory requirements for EMI emissions
• Prevents noise from affecting sensitive circuits

Additional Details:

The 'ACM90V' likely refers to a specific series of common mode chokes from TDK, with '701-2PL' designating specific electrical characteristics such as impedance, current rating, and package type. Common mode chokes work by presenting a high impedance to common mode currents (noise that flows in the same direction on multiple conductors) while presenting a low impedance to differential mode currents (the desired signal). This allows the desired signal to pass through with minimal attenuation while effectively blocking common mode noise. Designers must consult the official TDK datasheet for the ACM90V-701-2PL to determine the exact impedance characteristics, current rating, voltage rating, DC resistance, and physical dimensions. This information is crucial for selecting the appropriate common mode choke for a specific application and ensuring optimal noise suppression performance.
