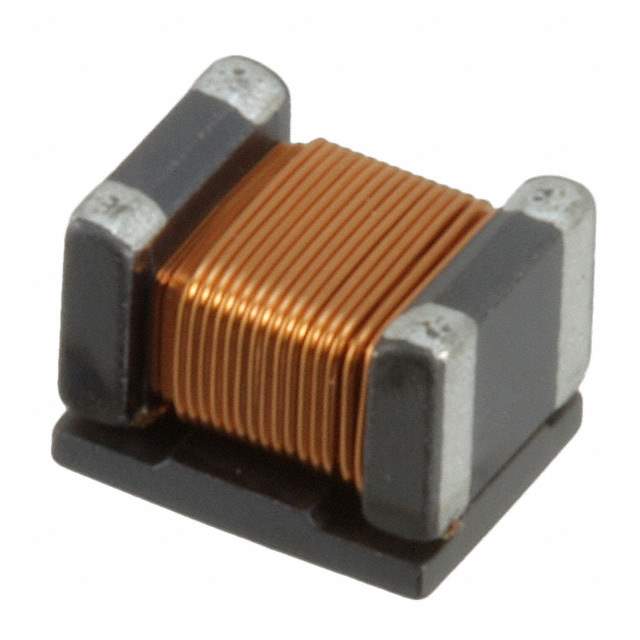

ATB322515-0110-T000 Real Image
Same model may have multiple batches, images only for reference.

ATB322515-0110-T000

Part No ATB322515-0110-T000
Manufacturer TDK Corporation
Catalog OEM Parts (A - B)
Description Step-up Transformers, Turns Ratio = 1: 10, Rated Current = 0.6Arms
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Height 1.55 mm
Inductance 7 µH
Isolation Voltage 500 V
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
RoHS Compliant
Win Source Part Number 1046752-ATB322515-0110-T000
Categories OEM Parts(A-B)
Manufacturer TDK Corporation
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ATB322515-0110-T000 CAD Model

Description

The ATB322515-0110-T000 is an inductor manufactured by TDK Corporation.

  • Inductance: 7 µH
  • Height: 1.55 mm
  • Isolation Voltage: 500 V
  • Supply and Demand Status: In Shortage
  • Win Source Part Number: 1046752-ATB322515-0110-T000
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 85 °C
