Same model may have multiple batches, images only for reference.

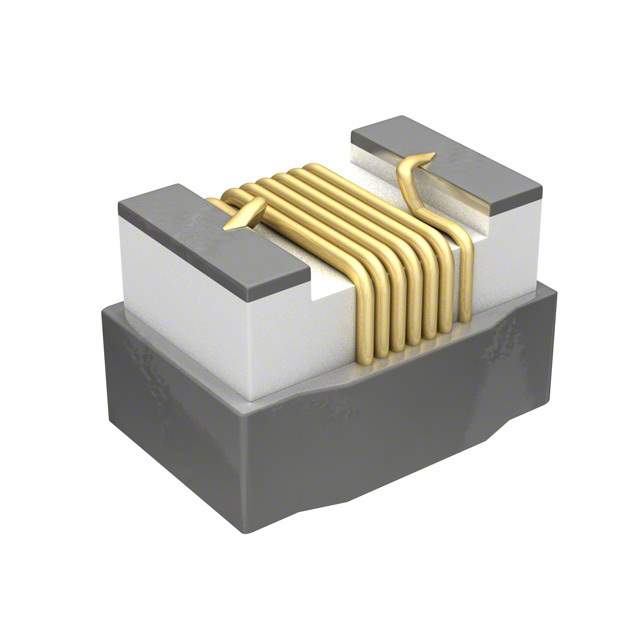

B82498F3681J1 Real Image
Same model may have multiple batches, images only for reference.

B82498F3681J1

Part No B82498F3681J1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Ind Chip Molded Wirewound 680nH 5% 25MHz 23Q-Factor Ceramic 190mA 0805 Blister T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package 0805
Composition Wirewound
Core Material Ceramic
Current Rating 190 mA
DC Current 190 mA
DC Resistance (DCR) 1.7 Ω
Depth 1.7 mm
Height 1.4 mm
Height - Seated (Max) 1.397 mm
Inductance 680 nH
Length 2.3114 mm
Max DC Current 190 mA
Military Standard Not
Mount Surface Mount
Packaging Tape and Reel
Radiation Hardening No
Ratings AEC-Q200
RoHS Compliant
Self Resonant Frequency 300 MHz
Shielding Unshielded
Test Frequency 25 MHz
Tolerance 5 %
Width 1.7018 mm
Win Source Part Number 1109686-B82498F3681J1
Categories Fixed Inductors
Manufacturer TDK Corporation
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82498F3681J1 CAD Model

Description

The B82498F3681J1 is a fixed inductor designed and manufactured by TDK Corporation.

  • Packaging: Tape and Reel
  • Current Rating: 190 mA
  • Inductance: 680 nH
  • Tolerance: 5%
  • Test Frequency: 25 MHz
  • Self-Resonant Frequency: 300 MHz
  • DC Current: 190 mA
  • DC Resistance (DCR): 1.7 Ω
  • Case/Package: 0805
