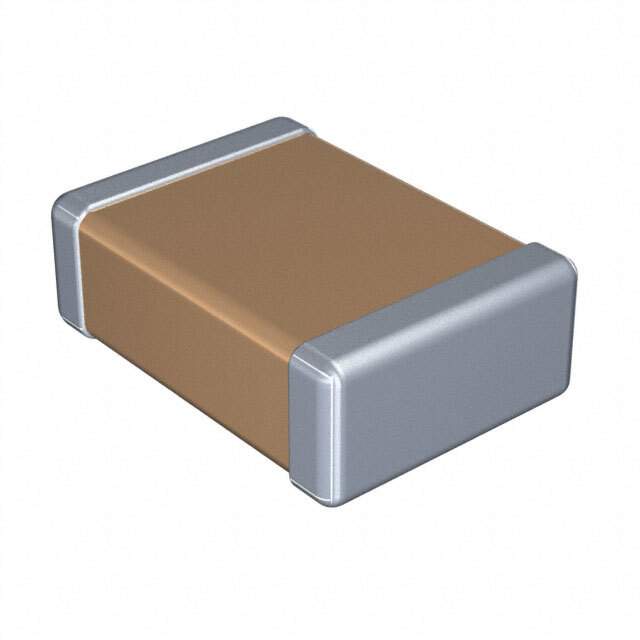

The C4532X7R2A684KT0L0U is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. MLCCs are widely used in electronic circuits for various applications, including decoupling, bypassing, filtering, and energy storage. This particular capacitor has specific characteristics tailored for certain uses.

Applications:

• Decoupling Capacitors: Placed near integrated circuits to provide a local source of charge, reducing noise and voltage fluctuations on the power supply lines.
• Bypass Capacitors: Used to bypass AC signals to ground, filtering out unwanted noise and improving signal integrity.
• Filtering Applications: Integrated into filters to attenuate specific frequency ranges, such as in low-pass, high-pass, and band-pass filters.
• Timing Circuits: Employed in timing circuits to control the frequency and duration of signals.
• Energy Storage: Used for short-term energy storage in applications where quick bursts of power are needed.

Features:

• X7R Dielectric: Offers stable performance over a wide temperature range (-55°C to +125°C) with minimal capacitance variation.
• High Capacitance Value: Provides a capacitance of 680nF, suitable for various applications requiring significant charge storage.
• Compact Size: Designed in a 1812 (4532 metric) case size, allowing for high density mounting on PCBs.
• High Voltage Rating: Rated for 100V, ensuring safe operation in higher voltage circuits.
• Low ESR (Equivalent Series Resistance): Minimizes power loss and heat generation, improving circuit efficiency.

Benefits:

• Improved Circuit Stability: X7R dielectric ensures stable performance over temperature, enhancing the reliability of electronic circuits.
• Noise Reduction: Effective decoupling and bypassing capabilities reduce noise and improve signal integrity.
• Compact Design: Small size allows for high-density mounting, saving space on PCBs.
• Wide Operating Temperature Range: Suitable for use in a variety of environmental conditions.
• Long Lifespan: Ceramic construction provides excellent reliability and long-term stability.

Additional Details:

The C4532X7R2A684KT0L0U capacitor’s specifications can be confirmed using the manufacturer's datasheet. It is designed for surface mount technology (SMT) and is compatible with automated assembly processes. Proper soldering techniques are essential for reliable performance, and the datasheet provides detailed recommendations for soldering profiles. The capacitor’s X7R dielectric material provides a good balance between capacitance stability and size. TDK MLCCs are known for their high quality and performance, making them a preferred choice in various electronic applications.
