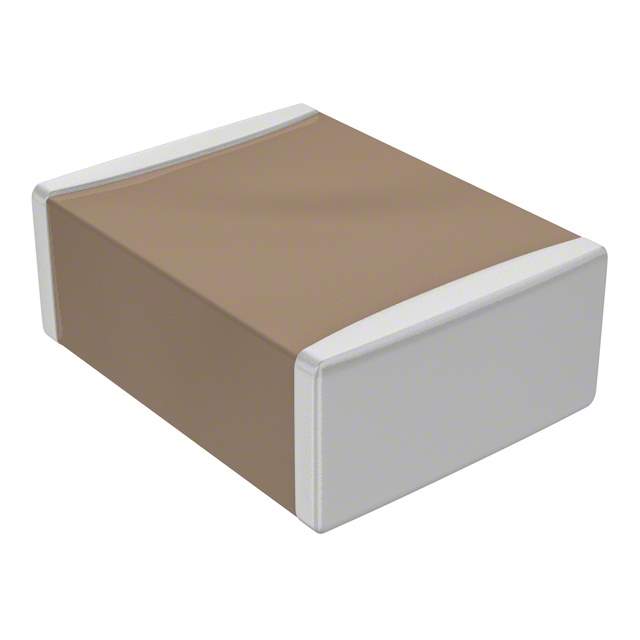

The C5750X7R1H106KT000N is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. This capacitor is distinguished by its X7R dielectric, offering stable performance across a wide temperature range. It finds common use in decoupling, bypassing, and general filtering applications within electronic circuits. Its larger case size allows for higher capacitance values and voltage ratings compared to smaller MLCCs.

Applications

• Decoupling capacitors in power circuits
• Bypass capacitors in high-current applications
• Filtering for noise reduction
• General-purpose capacitance
• Power supplies
• Industrial equipment

Features

• X7R dielectric material
• Multilayer ceramic construction
• Surface mount device (SMD)
• Larger case size (5750 or 2220 in inches)
• Stable capacitance over temperature

Benefits

• Effective suppression of noise and voltage fluctuations
• Reliable operation in demanding temperature environments
• High capacitance value in a compact form factor
• Simplified integration into automated assembly lines
• Extended operational lifespan

Technical Specifications

• Capacitance: 10 µF (106 indicates 10 x 10^6 pF)
• Voltage Rating: 50 V (1H indicates 50V)
• Dielectric: X7R
• Case Size: 5750 (EIA 2220) - 5.7mm x 5.0mm
• Tolerance: ±10% (K)
• Termination: Nickel barrier with solder plating
• Temperature Coefficient: ±15% from -55°C to +125°C

This capacitor is well-suited for applications requiring stable and high-capacitance performance in a surface-mount package. Always refer to the official TDK datasheet for complete specifications and application guidelines.
