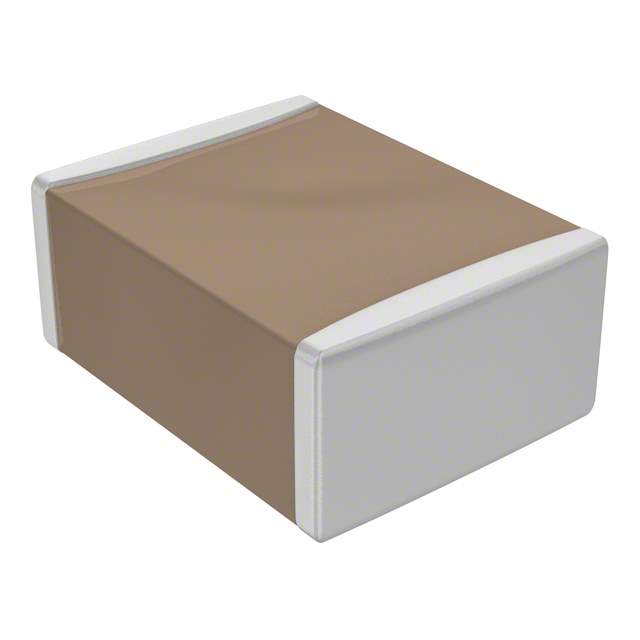

The C5750X7S2A156MT000N is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. It is designed to provide stable and reliable performance in a wide range of electronic applications. MLCCs are essential components used for decoupling, bypassing, filtering, and energy storage in electronic circuits.

Applications

• Power Supplies: Used for smoothing and filtering DC power in various power supply designs.
• Automotive Electronics: Employed in automotive control units, engine control systems, and other automotive applications.
• Industrial Equipment: Used in industrial automation and control systems where reliability is critical.
• Consumer Electronics: Found in various consumer electronic devices, such as televisions, audio equipment, and home appliances.
• Telecommunications Equipment: Utilized in telecommunications systems for signal conditioning and power management.

Features

• Capacitance: Offers a capacitance value of 15µF.
• Voltage Rating: Rated for 100V.
• X7S Dielectric: Utilizes an X7S dielectric material, which provides stable performance over a wide temperature range (-55°C to +125°C).
• Case Size: Available in a 2220 (5750 Metric) case size.
• RoHS Compliant: Complies with RoHS directives, ensuring environmental friendliness.
• High Reliability: Designed and manufactured to meet stringent quality standards, ensuring long-term reliability.

Benefits

• Stable Performance: The X7S dielectric ensures stable capacitance and dissipation factor over temperature and voltage variations.
• High Capacitance Value: Provides a high capacitance value in a compact size, making it suitable for demanding applications.
• Wide Operating Temperature Range: Operates reliably in extreme temperature conditions.
• Long Lifespan: Provides a long and reliable service life in demanding applications.
• Suitable for High-Density Designs: Allows for high-density circuit designs due to its compact size.

Additional Details

The C5750X7S2A156MT000N capacitor is designed for surface mount technology (SMT) and is compatible with automated assembly processes. The X7S dielectric provides a capacitance variation of ±22% over the operating temperature range. This capacitor is well-suited for applications requiring high capacitance, stable performance, and robust operation in harsh environments, such as automotive and industrial applications where performance and reliability are paramount.
