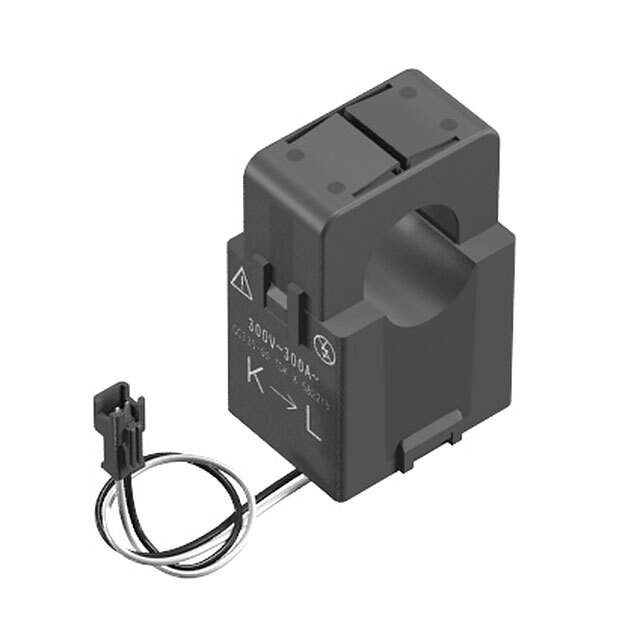

CCT354571-300-24-00 Real Image
Same model may have multiple batches, images only for reference.

CCT354571-300-24-00

Part No CCT354571-300-24-00
Manufacturer TDK Corporation
Catalog Current Sense Transformers
Description CURR SENSE XFMR 300A CHAS MNT / 300 A Current Sense Transformer 50/60Hz 103Ohm Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr TDK Corporation
Series CCT
Package Bulk
Frequency Range 50/60Hz
Type Non-Invasive (Split Core)
Current Rating (Amps) 300 A
DC Resistance (DCR) 103Ohm
Mounting Type Chassis Mount
Dimension 1.909" L x 1.555" W (48.50mm x 39.50mm)
Height - Seated (Max) 2.835" (72.00mm)
Termination Style Wire Leads with Connector
Weight 0.053 lb (24.04 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9030.33.3400
Other Names 445-173068
Standard Package 24
Win Source Part Number 968397-CCT354571-300-24-00
Ultra Librarian 3D Model Ultra Librarian CCT354571-300-24-00 CAD Model

Description

The TDK Corporation CCT354571-300-24-00 is a current sense transformer categorized under transformers.

  • Type: Non-invasive (split core)
  • Termination Style: Wire leads with connector
  • Packaging: Bulk
  • Standard Package: 24
  • Seated Height: 2.835 inches (72.00mm)
  • Weight: 0.053 lb (24.04 g)
  • Frequency Range: 50/60Hz
  • DC Resistance (DCR): 103Ohm
  • Dimensions: 1.909 inches L x 1.555 inches W (48.50mm x 39.50mm)
  • MSL Level: 1 (unlimited)
  • Current Rating (amps): 300 A
  • HTSUS Code: 9030.33.3400
