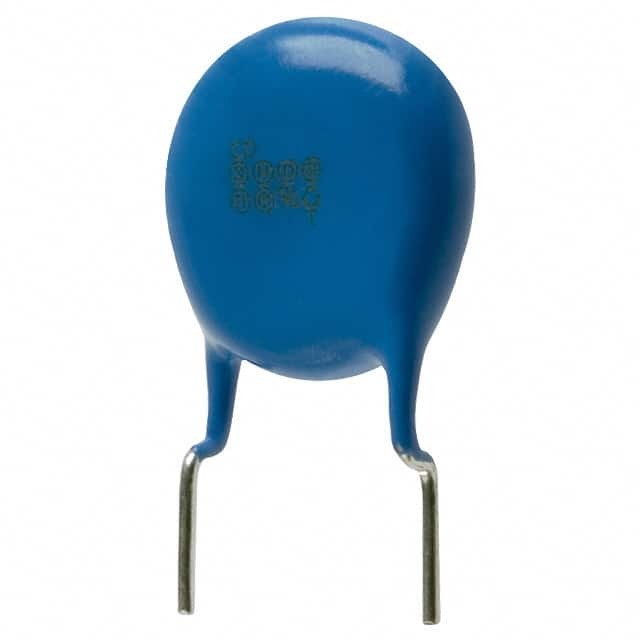

Same model may have multiple batches, images only for reference.
CD12ZU2GA472MYGKA
Same model may have multiple batches, images only for reference.

CD12ZU2GA472MYGKA

Part No CD12ZU2GA472MYGKA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 4700PF 440VAC Z5U RADIAL / 4700 pF ±20% 440VAC Ceramic Capacitor Z5U Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CD
Package Bulk
Product Status Obsolete
Capacitance 4700 pF
Tolerance ±20%
Voltage - Rated 440VAC
Temperature Coefficient Z5U
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage
Ratings X1, Y1
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.531" Dia (13.50mm)
Height - Seated (Max) 0.689" (17.50mm)
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 915016-CD12ZU2GA472MYGKA
Ultra Librarian 3D Model Ultra Librarian CD12ZU2GA472MYGKA CAD Model

Description

The TDK Corporation CD series ceramic capacitor, with a part number of 915016-CD12ZU2GA472MYGKA, is a high-voltage capacitor designed for safety applications.

  • Manufacturer: TDK Corporation
  • Series: CD
  • Part Number: 915016-CD12ZU2GA472MYGKA
  • Capacitance: 4700 pF
  • Voltage Rating: 440VAC
  • Safety Rating: X1 and Y1
  • Lead Style: Formed leads with kinked style
  • Mounting Type: Through-Hole
  • Size: 0.531" Dia
  • Height: 0.689"
  • Operating Temperature Range: -25°C to 125°C
  • Packaging: Bulk
  • Standard Package: 1,000 pcs
  • Component Status: Obsolete
