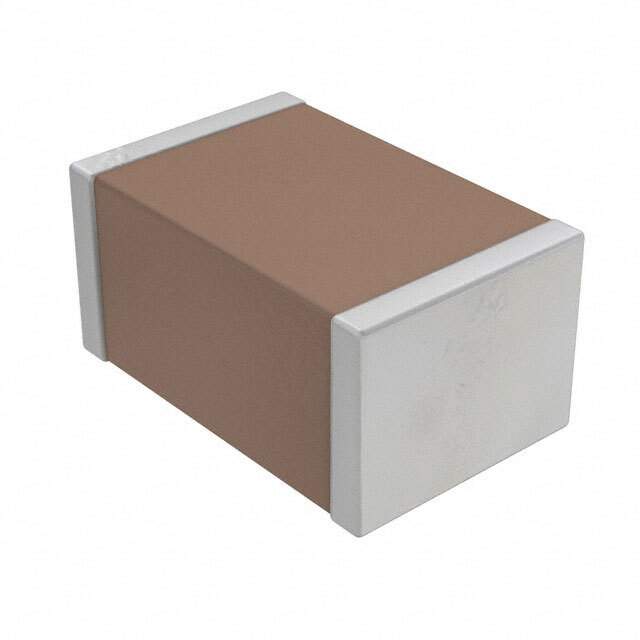

The CGA4J3X7R2E103K125AA is a multilayer ceramic capacitor (MLCC) from TDK Corporation. It's designed for general-purpose applications requiring stable capacitance characteristics over a wide temperature range. This component is commonly used in various electronic circuits to provide decoupling, bypassing, and filtering functions.

Applications:

• Decoupling Capacitors: Providing localized power supply decoupling for integrated circuits.
• Bypass Capacitors: Filtering noise and unwanted signals in electronic circuits.
• Smoothing Capacitors: Reducing voltage ripple in power supplies.
• Filtering Circuits: Used in low-pass, high-pass, and band-pass filters.
• Timing Circuits: Contributing to the timing accuracy of oscillators and timers.
• General-Purpose Applications: Suitable for use in a wide variety of electronic devices.

Features:

• Capacitance: 10 nF (103)
• Voltage Rating: 250V (2E)
• Temperature Characteristic: X7R (Stable capacitance over temperature)
• Tolerance: ±10% (K)
• Size Code: 1210 (EIA) / 3225 (JIS)
• Termination: Nickel barrier with tin plating
• RoHS Compliant: Complies with the Restriction of Hazardous Substances directive

Benefits:

• Stable Capacitance: The X7R dielectric provides a stable capacitance over a wide temperature range (-55°C to +125°C).
• High Voltage Rating: The 250V rating allows for use in high-voltage applications.
• Compact Size: The 1210 package offers a good balance between capacitance value and board space.
• Reliable Performance: Manufactured by TDK to ensure consistent and reliable performance.
• RoHS Compliant: Environmentally friendly and meets regulatory requirements.
• Versatile Applications: Suitable for a broad range of general-purpose applications.

Additional Details:

The CGA4J3X7R2E103K125AA capacitor is constructed using TDK's advanced ceramic material technology and multilayer manufacturing processes. The X7R dielectric ensures that the capacitance changes by no more than ±15% over the specified temperature range. The nickel barrier termination provides excellent solderability and prevents silver leaching during soldering processes. This capacitor is commonly used in various electronic devices where stable capacitance and reliable performance are required.
