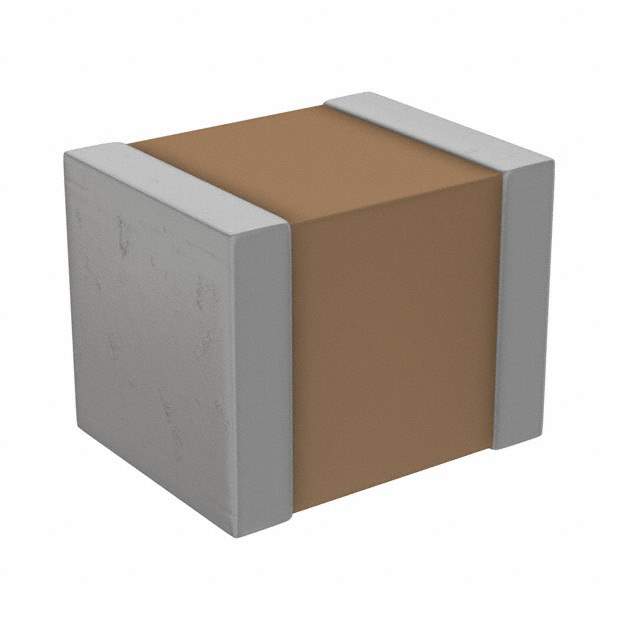

Same model may have multiple batches, images only for reference.

CGA6P3X7R1E226M250AB

Name: CGA6P3X7R1E226M250AB
Brand: TDK Corporation
SKU: 1330379
Availability: InStock
Rating: 4.93 (159 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CGA6P3X7R1E226M250AB
Manufacturer	TDK Corporation
Catalog	Ceramic Capacitors
Description	CAP CER 22UF 25V X7R 1210 / 22 µF ±20% 25V Ceramic Capacitor X7R 1210 (3225 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Ceramic Capacitors
Manufacturer	TDK Corporation
Packaging	Reel - TR
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	25V
Temperature Coefficient	X7R
Temperature Range - Operating	-55°C ~ 125°C
Features	Low ESL
Ratings	AEC-Q200
Applications	Automotive
Mounting	Surface Mount, MLCC
Case / Package	1210 (3225 Metric)
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Thickness (Max)	0.110" (2.80mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.24.0020
Other Part Number	445-180363-6,CGA6P3X7R1E226MT000N,445-180363-2,445-180363-1
Standard Package	1,000
Win Source Part Number	1330379-CGA6P3X7R1E226M250AB
Ultra Librarian 3D Model	Ultra Librarian CGA6P3X7R1E226M250AB CAD Model

Alternative Products

Description

The TDK Corporation CGA6P3X7R1E226M250AB is a ceramic capacitor used in various applications.

Capacitance: 22 µF
Voltage - Rated: 25V
Tolerance: ±20%
Temperature Coefficient: X7R
Package / Case: 1210 (3225 Metric)
Temperature Range - Operating: -55°C to 125°C
AEC-Q200 Rated: Yes
MSL Level: 1 (Unlimited)
Supplier Device Package: Reel - TR
